Maximum efficiency 93%.
Intelligent fan control: Controls fan on and offaccording to load and internal temperature.
Application: home, office, vehice,yacht and other ocasions.
Input under voltage protection, input over voltageprotection, overload protection, short circuitprotection, over temperature protection.

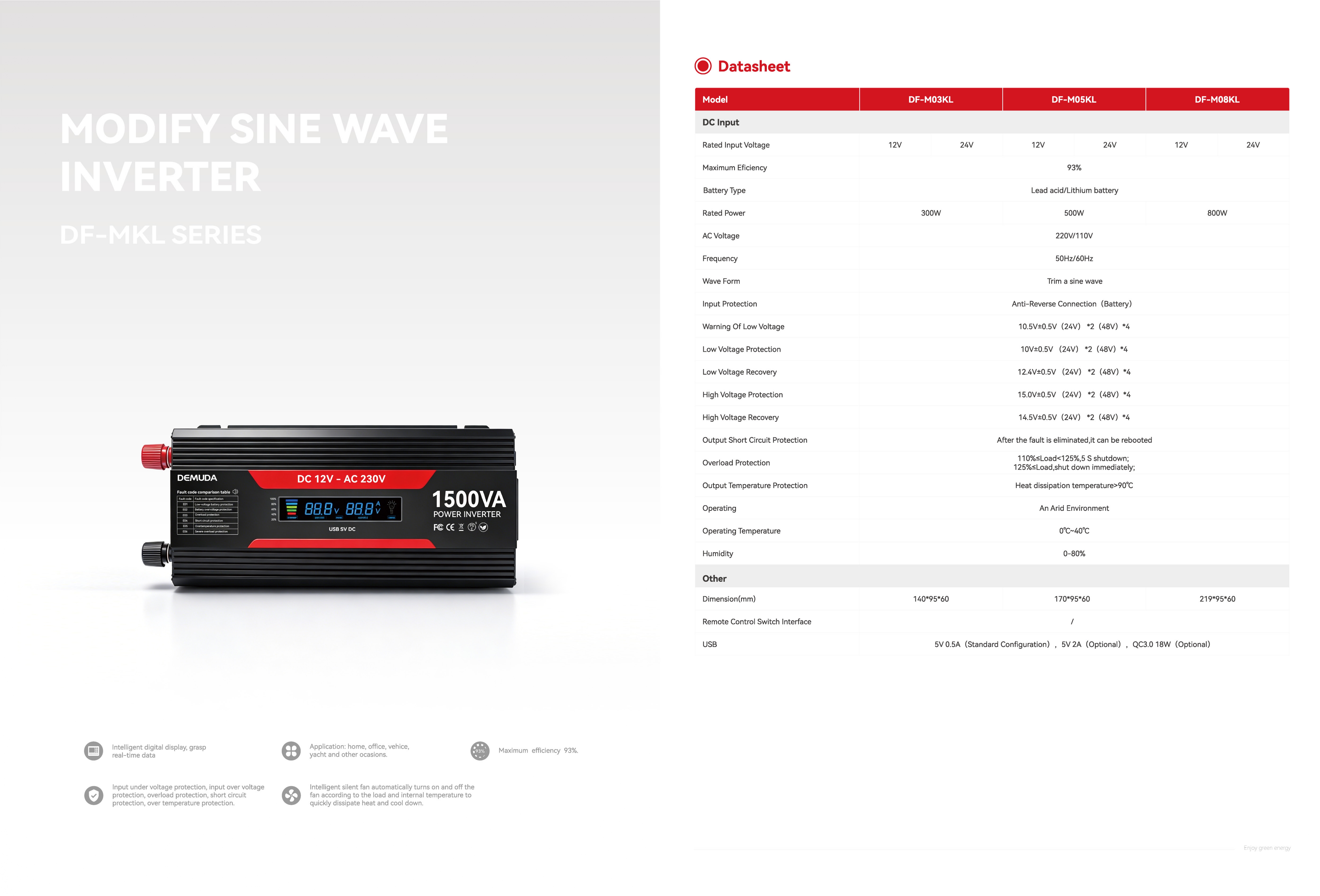

►Product Parameters
| Model | DF-M03KL | DF-M05KL | DF-M08KL | |||
| DC Input | ||||||
| Rated Input Voltage | 12V | 24V | 12V | 24V | 12V | 24V |
| Maximum efficiency | 93% | |||||
| Battery Type | Lead acid/Lithium battery | |||||
| Rated Power | 300W | 500W | 800W | |||
| AC Voltage | 220V/110V | |||||
| Frequancy | 50Hz/60Hz | |||||
| Wave Form | Tim a sine wave | |||||
| Input Protection | Anti-Reverse Connection (Battery) | |||||
| Warning Of Low Voltage | 10.5V±0.5V（24V） *2（48V）*4 | |||||
| Low Vottage Protection | 10V±0.5V （24V） *2（48V）*4 | |||||
| Low Vottage Recovery | 12.4V±0.5V （24V） *2（48V）*4 | |||||
| High Volage Protection | 15.0V±0.5V （24V） *2（48V）*4 | |||||
| High Volage Recovery | 14.5V±0.5V（24V） *2（48V）*4 | |||||
| Output Shert Croult Protection | After the fault is eliminated,it can be rebooted | |||||
| Overload Protection | 110%≤Load<125%,5 S shutdown; 125%≤Load,shut down immediately; | |||||
| Output Temperature Protection | Heat dissipation temperature>90℃ | |||||
| Operating | An Arid Environment | |||||
| Operating Temperature | 0℃~40℃ | |||||
| Humidity | 0-80% | |||||
| Other | ||||||
| Dimension(mm) | 140*95*60 | 170*95*60 | 219*95*60 | |||
| Remote Control Switch Interface | Standard Configuration | |||||
| USB | 5V 0.5A（Standard Configuration），5V 2A（Optional），QC3.0 18W（Optional） | |||||
►Product Details
