►Product Features

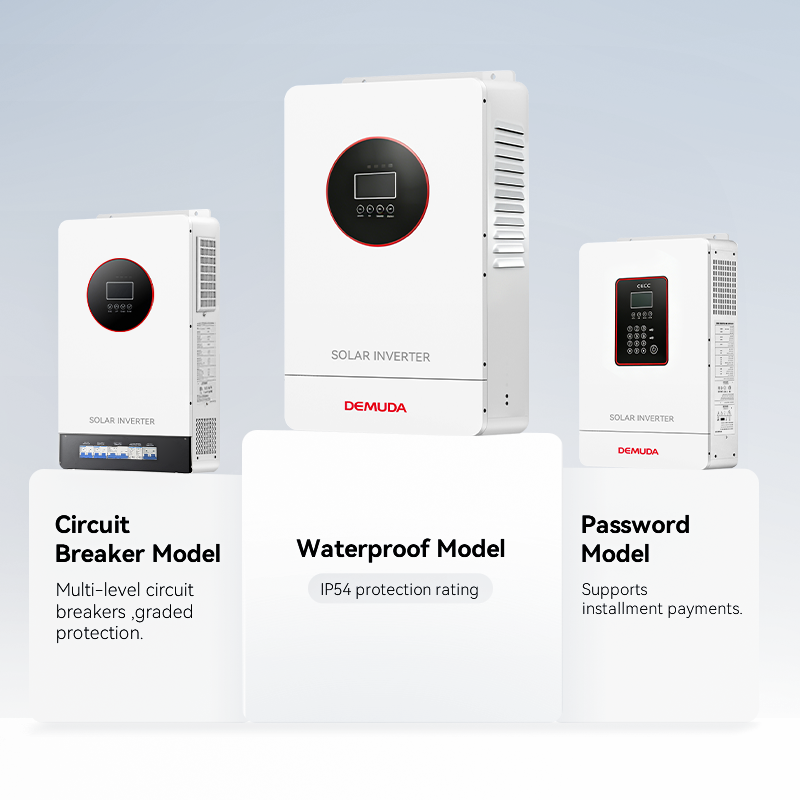

High level protection: IP54 dustproof and waterproof, suitable for harsh environments in multiple scenarios.
Strong durability: Sealed protection, reduces dust and water vapor erosion, and extends equipment life.

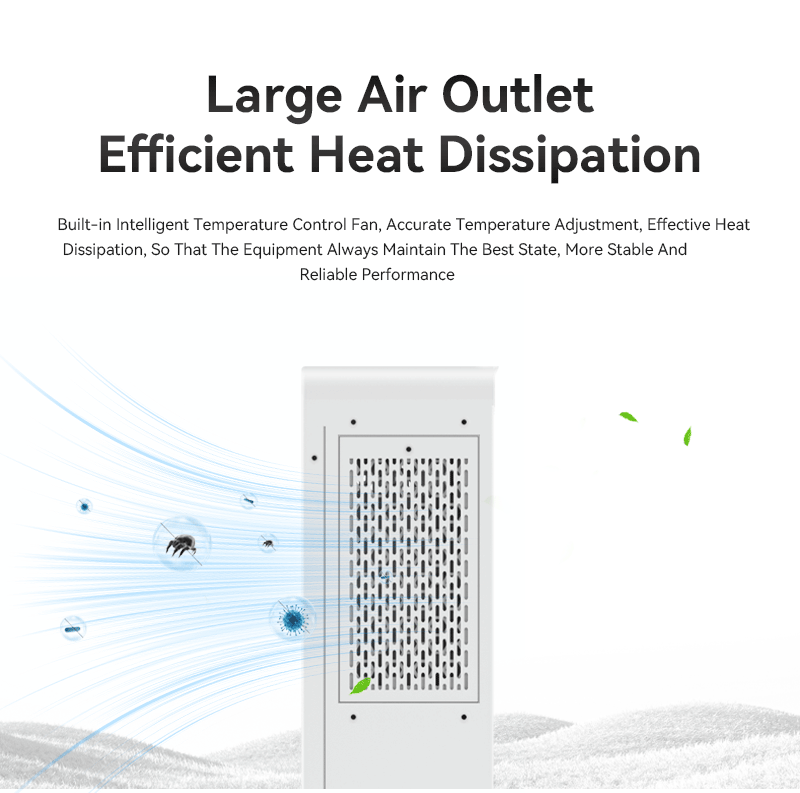

Stable operation: optimized heat dissipation, anti-corrosion and durable, higher reliability.

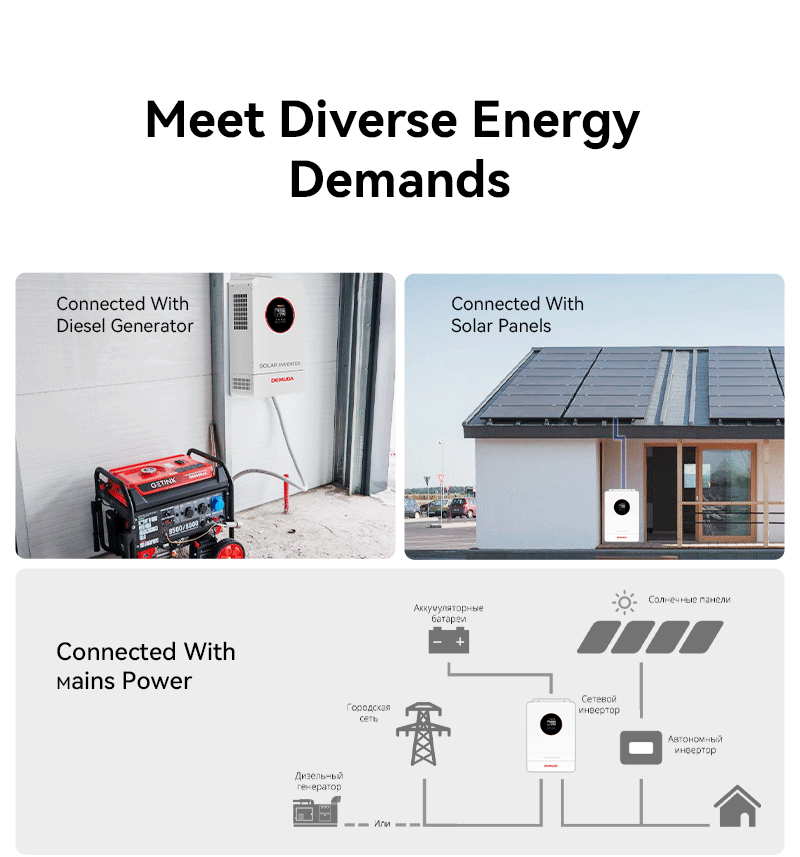

Widely applicable: can be used in various scenarios such as roofs, balconies, garages, factories, etc.
►Product Parameters
Parameter Item | DFHY6.2KVA-EU | DFHY6.2KVA-EU 2.0 (PRO Upgraded Version) | Improvement |
Output Power | 5500W | 6000W | Output power increased by 9% |
Mains Charging Current | 100A | 120A | Mains charging current increased by 20% |
Maximum Bypass Overload Current | 40A | 40A | — |
Maximum PV Input Power | 6000W | 9000W | Maximum PV input power increased by 50% |
Number of PV Inputs | 1 Channel | 1 Channel | — |
Maximum PV Input Current | 22A | 27A | Maximum PV input current increased by 22.7% |
Maximum PV Charging Current | 100A | 120A | Maximum PV charging current increased by 20% |
Number of PV Inputs | 1 Channel | 1 Channel | — |
MPPT Tracking Range | 120-500V | 60-500V | MPPT tracking range voltage is wider, as low as 60V |
MPPT Start-up Voltage | 120V | 80V | MPPT start-up voltage is lower |
►Product Details
