3.6kW 5kWh 8kWh All-in-One Solar Energy Storage UPS Power Station Home PV Backup System

Product introduction

The Demuda integrated mobile energy storage power supply has two capacity versions, 5.27kWh and 8.04kWh, and can continuously output 3600W pure sine wave 220V AC power. The product is equipped with A-grade lithium iron phosphate battery cells, with a cycle life of up to 6000 and 10000 times, and built-in battery balanced management and multiple safety protection structures; The whole machine is integrated with a 100A MPPT controller, which supports up to 5000W solar energy input and increases the photoelectric conversion efficiency by 20%. It can be fully charged in as little as 2.3 hours. It is also compatible with multiple input power supply from photovoltaic, mains, and generator. The mains charging can distinguish between APL and UPS voltage modes, and has seamless switching function in milliseconds of less than 10 milliseconds. It can provide uninterrupted power supply during power outages. The device comes with a built-in LCD display screen, paired with WiFi remote monitoring and OTA online upgrade functions, making it convenient to view real-time operational data and perform remote debugging; The body is equipped with lockable casters for easy movement, and the side heat dissipation ducts are paired with multiple AC output interfaces, making installation and use simple.

Quantity:

Inquire

Add to Basket

Product details

►Product Features

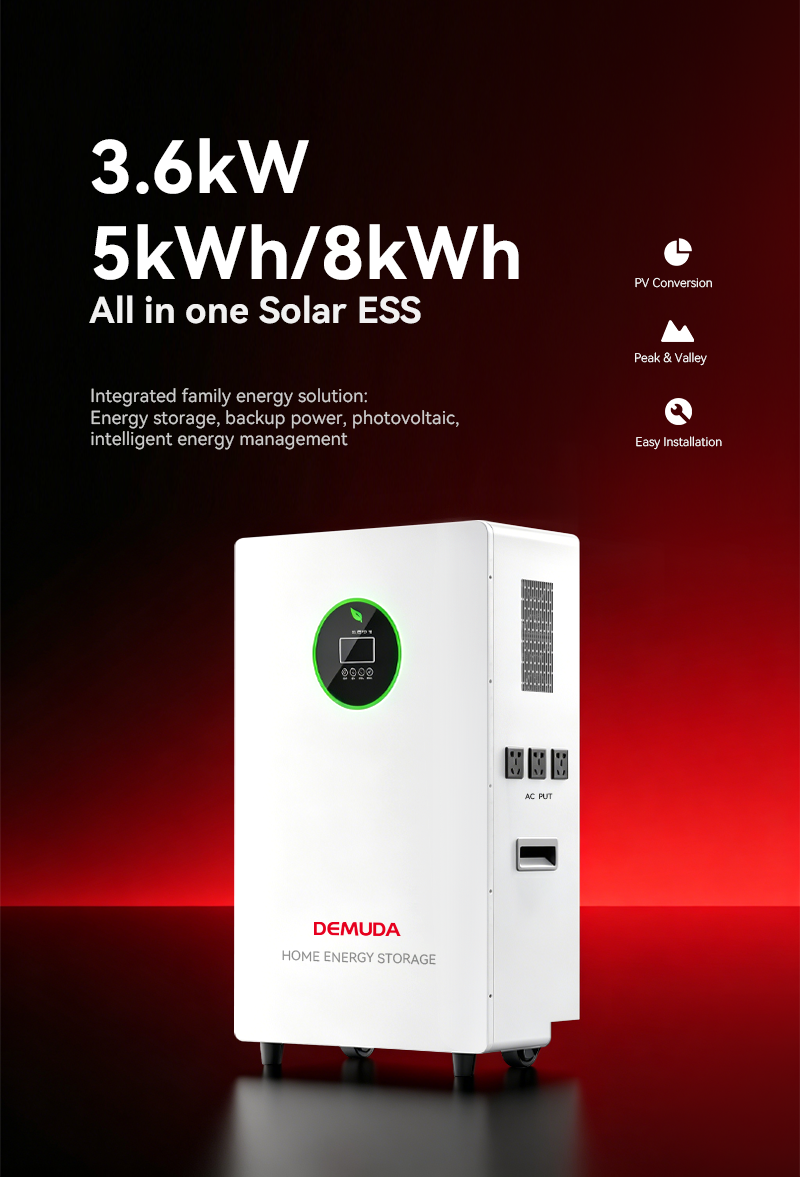

3.6kW continuous output, divided into two capacity versions of 5kWh/8kWh, uniform size, pure sine wave 220V output
A+lithium iron phosphate battery cell, cycled 6000-10000 times, with battery balance and multiple safety protections

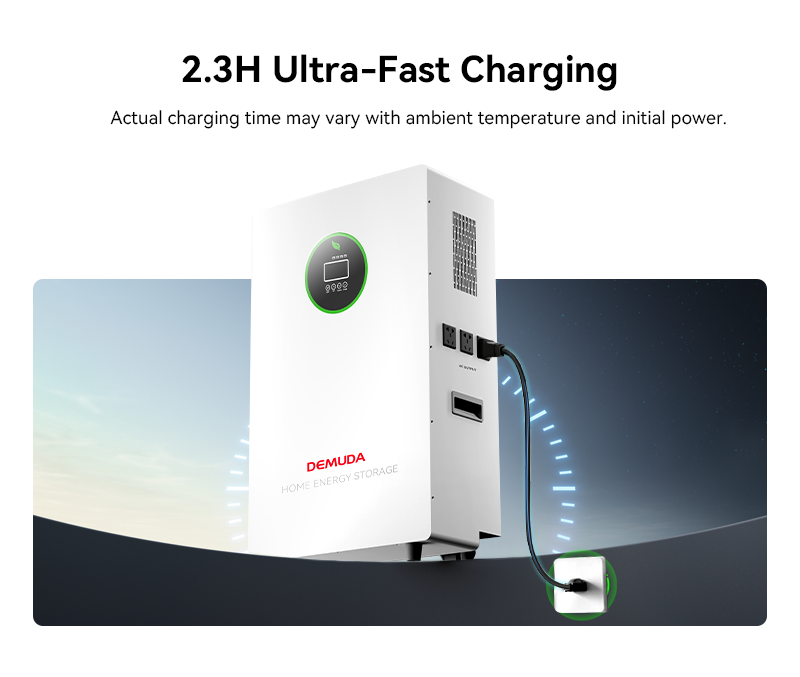

Built in 100A MPPT, 5000W photovoltaic input, 20% increase in photoelectric conversion, fastest full charge in 2.3 hours

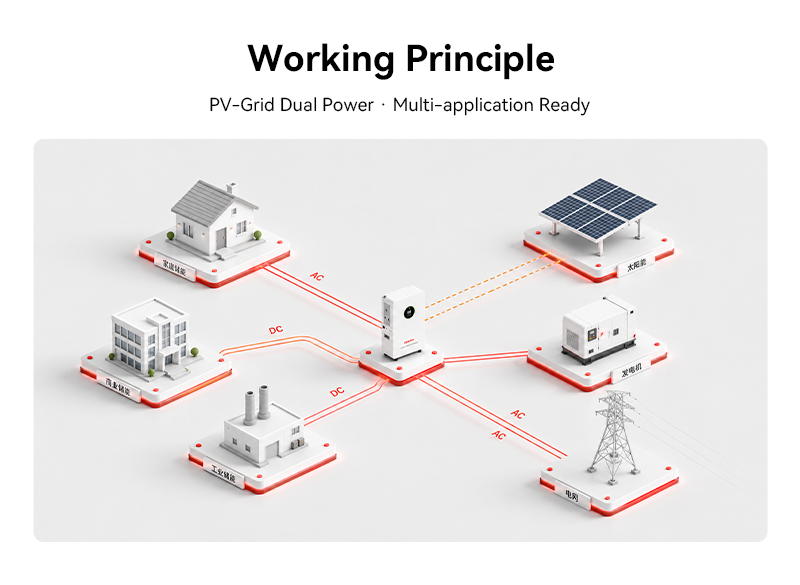

<10ms millisecond level switching, power on/off, supports multiple inputs of photovoltaic/mains/generator

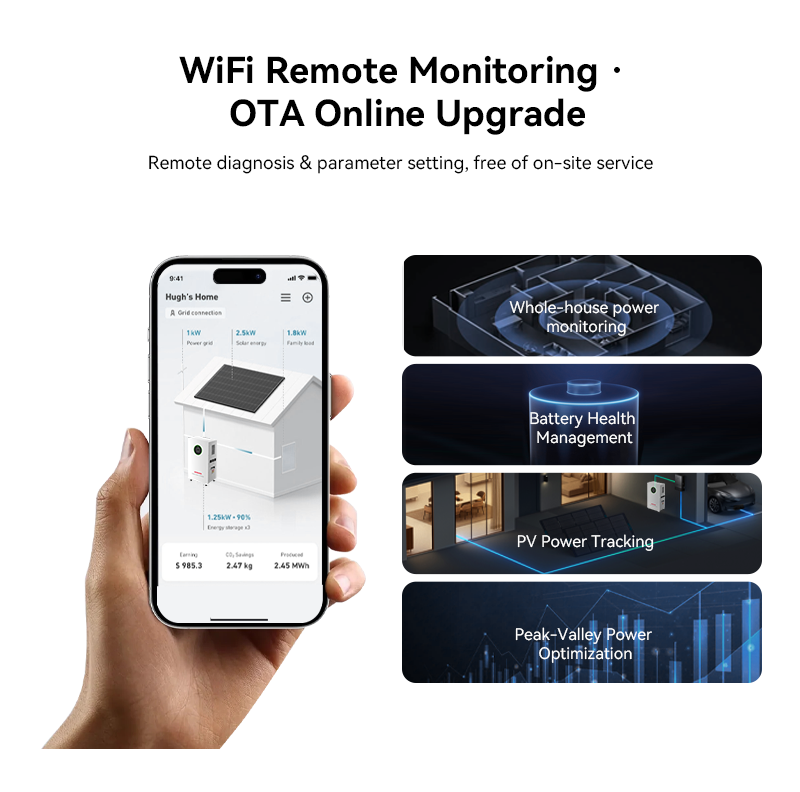

WiFi mobile remote monitoring, OTA online upgrade, and intuitive viewing of operational data on the body LCD screen

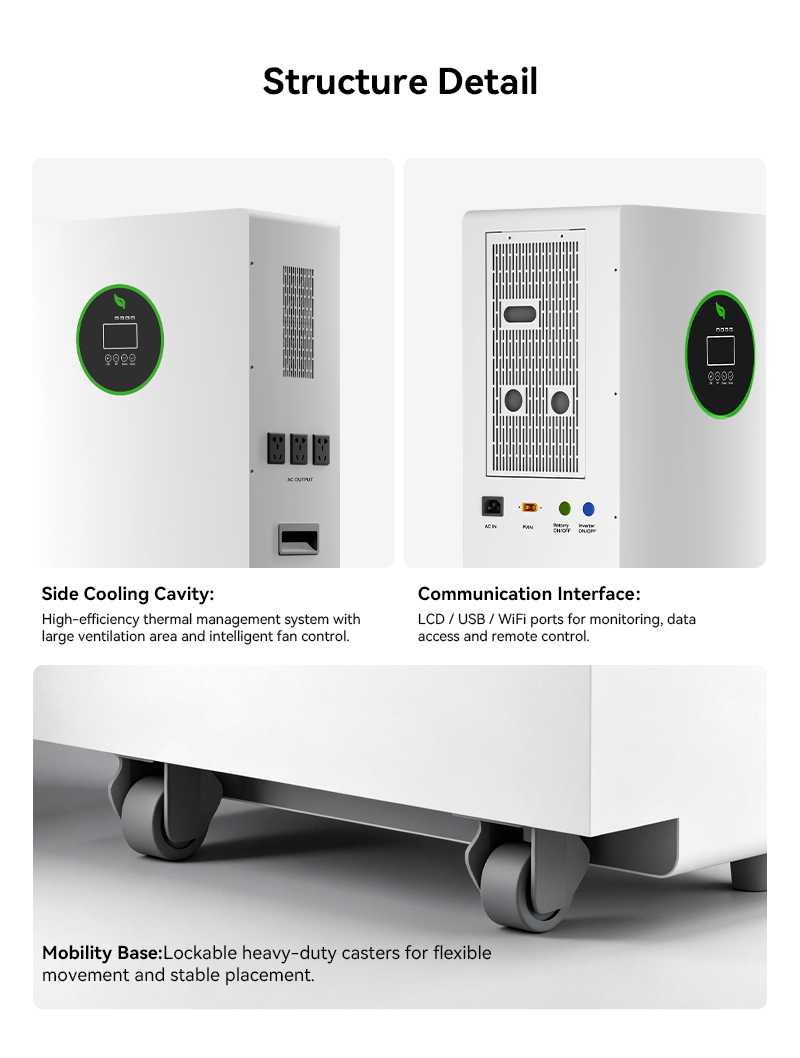

Locking casters for easy mobility, side mounted heat dissipation ducts, multiple AC outlets for direct output, easy installation
Integrating photovoltaic energy storage, power outage backup, and peak valley power saving for households, shops, and small factories

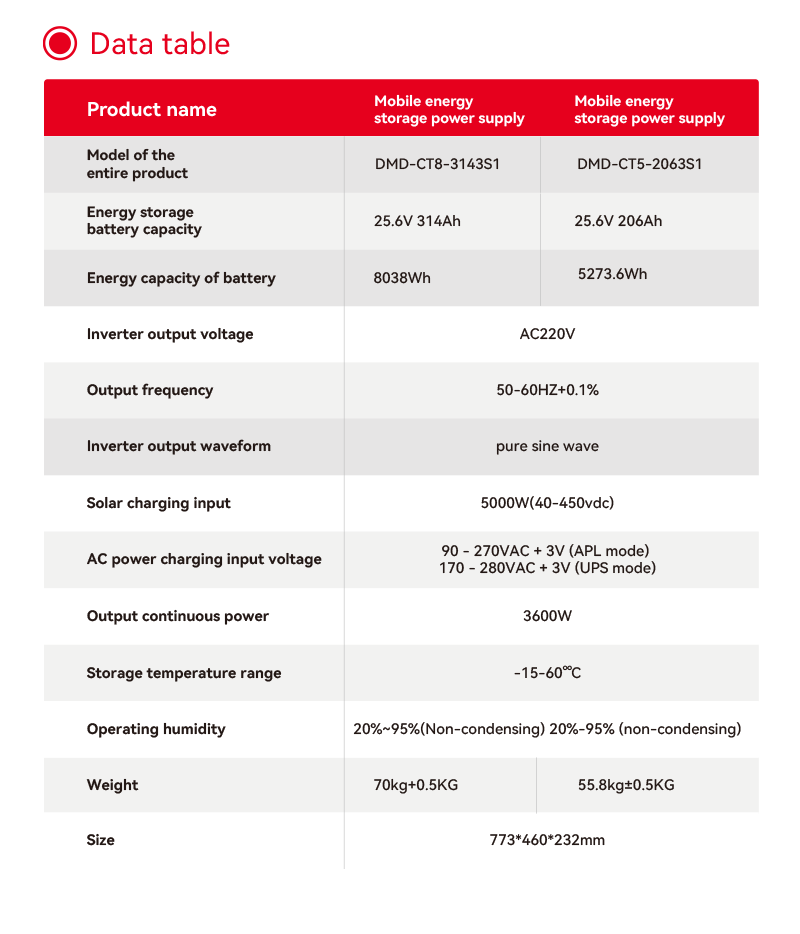

►Product Parameters

Product name	Mobile energy storage power supply	Mobile energy storage power supply
Model of the entire product	DMD-CT8-3143S1	DMD-CT5-2063S1
Energy storage battery capacity	25.6V 314Ah	25.6V 206Ah
Energy capacity of battery	8038Wh	5273.6Wh
Inverter output voltage	AC220V	AC220V
Output frequency	50-60HZ+0.1%	50-60HZ+0.1%
Inverter output waveform	pure sine wave	pure sine wave
Solar charging input	5000W(40-450vdc)	5000W(40-450vdc)
AC power charging input voltage	90 – 270VAC + 3V (APL mode)170 – 280VAC + 3V (UPS mode)	90 – 270VAC + 3V (APL mode)170 – 280VAC + 3V (UPS mode)
Output continuous power	3600W	3600W
Storage temperature range	-15-60℃	-15-60℃
Operating humidity	20%~95%(Non-condensing) 20%-95% (non-condensing)	20%~95%(Non-condensing) 20%-95% (non-condensing)
Weight	70kg±0.5KG	55.8kg±0.5KG

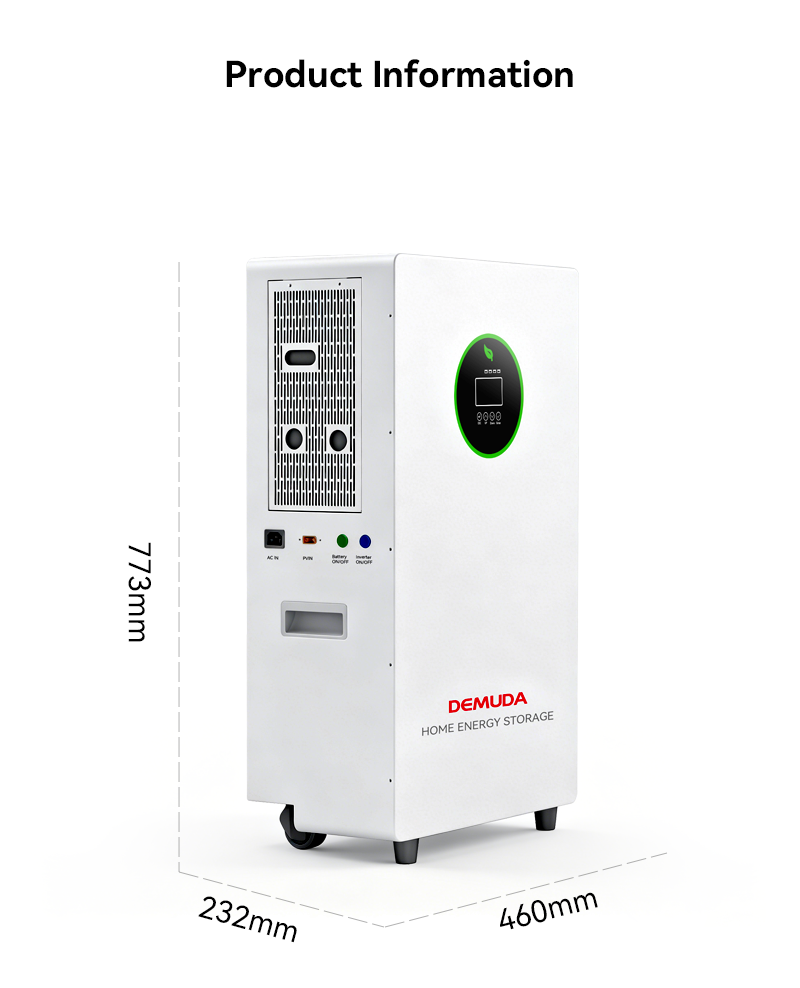

Size	773460232mm	773460232mm

►Product Details
