30A 12V/24V KLS1830-30A Solar Charge Controller

Product introduction

KLS1830-30A is a PWM solar charging controller with a rated current of 30A. It can automatically recognize 12V/24V lead-acid battery systems and has a maximum photovoltaic input voltage of 50V. The body is equipped with dual 5V USB interfaces for convenient power supply to small digital devices. The device is equipped with an LCD display screen, which can view real-time operating data such as voltage and power. It supports two load modes: light control and time control. It has a built-in MCU chip and can set parameters for power-off retention, making it easy to operate. The product integrates six layers of safety protection, including overcharge, overdischarge, short circuit, and reverse connection. The compact body has good heat dissipation and can work stably in environments ranging from -20 ℃ to 60 ℃. Suitable for off grid energy storage scenarios such as household photovoltaics, solar street lights, and RVs, with CE and RoHS certifications, supporting OEM and ODM customization.

Quantity:

Inquire

Add to Basket

Product details

►Product Features

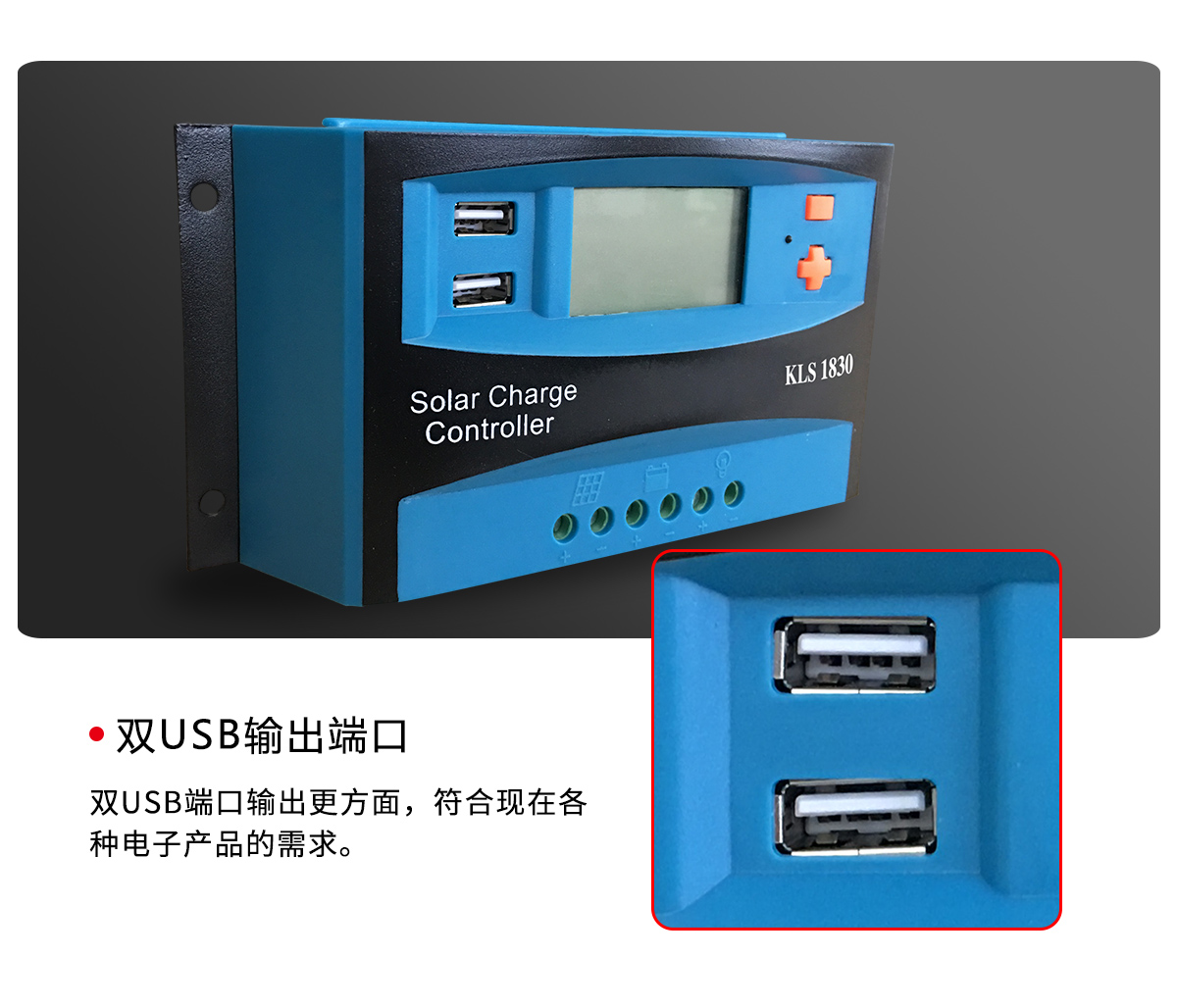

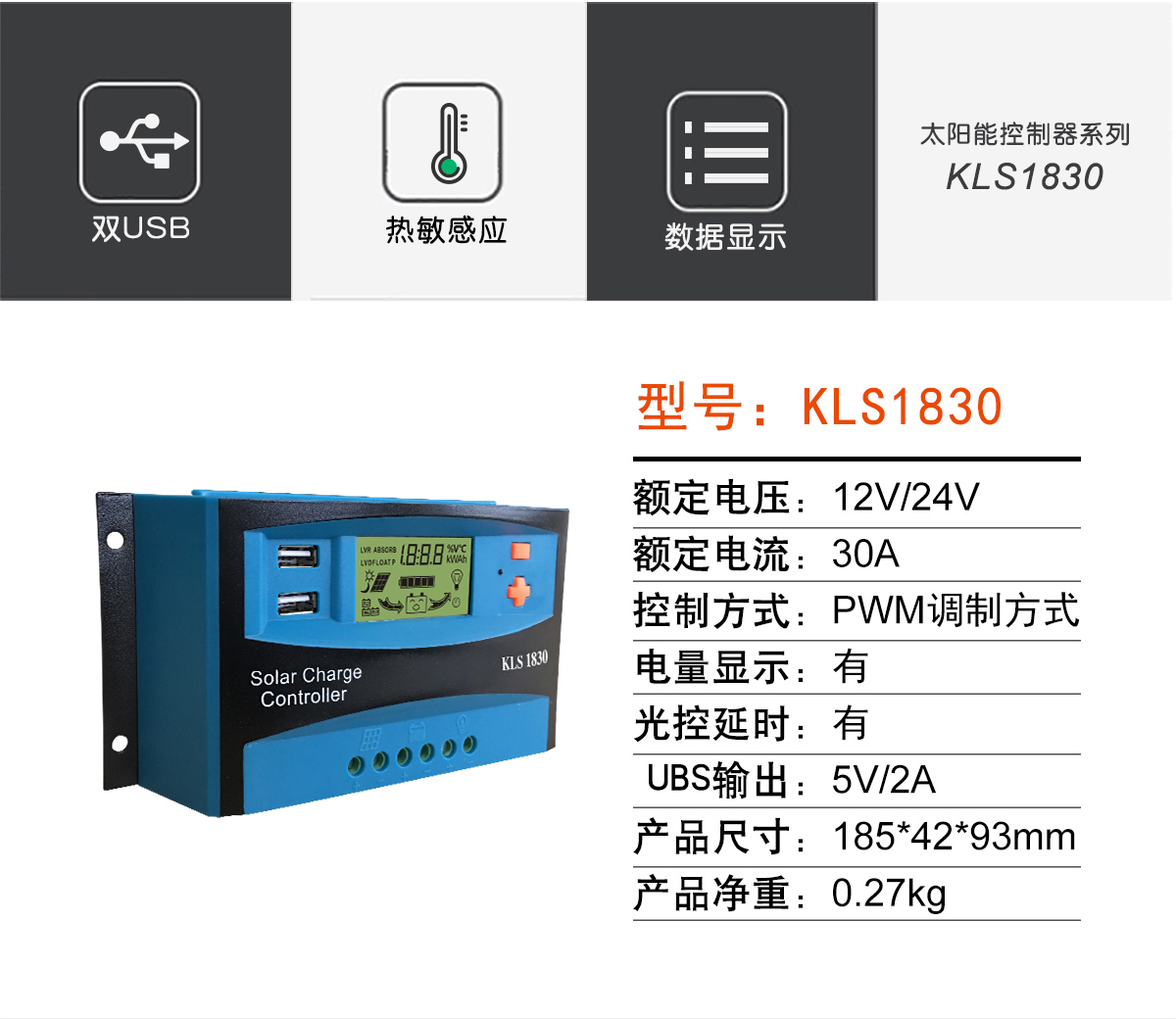

Electrical parameters: 30A rated current, automatic recognition of 12V/24V lead-acid batteries, PWM charging, maximum photovoltaic input of 50V, equipped with dual 5V USB output.

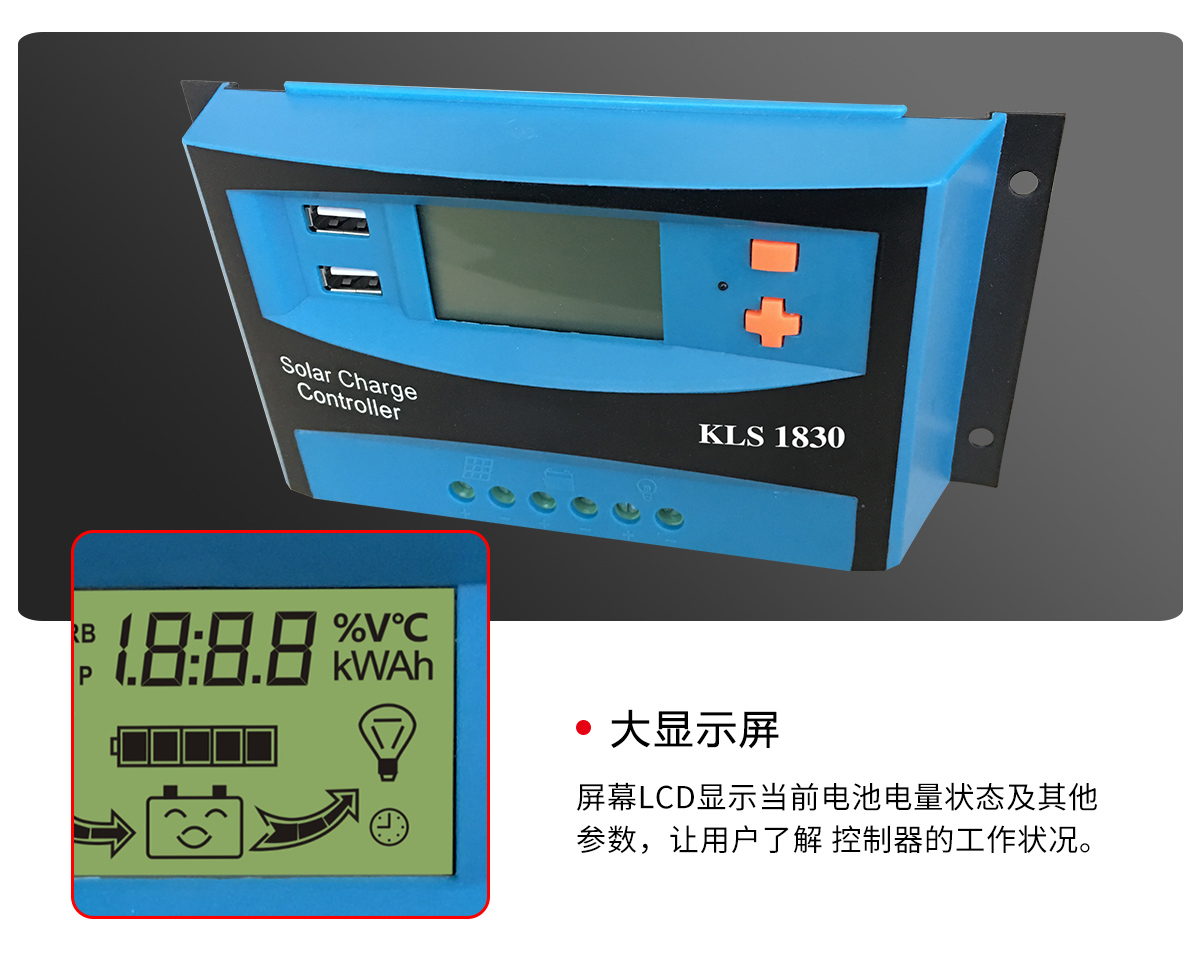

Function operation: LCD displays operational data, supports light control and time control modes; MCU main control, power off to save parameters, easy key debugging.
Safety protection: It has six layers of protection including overcharge, overdischarge, overload, overcurrent, short circuit, and reverse connection to protect the battery.

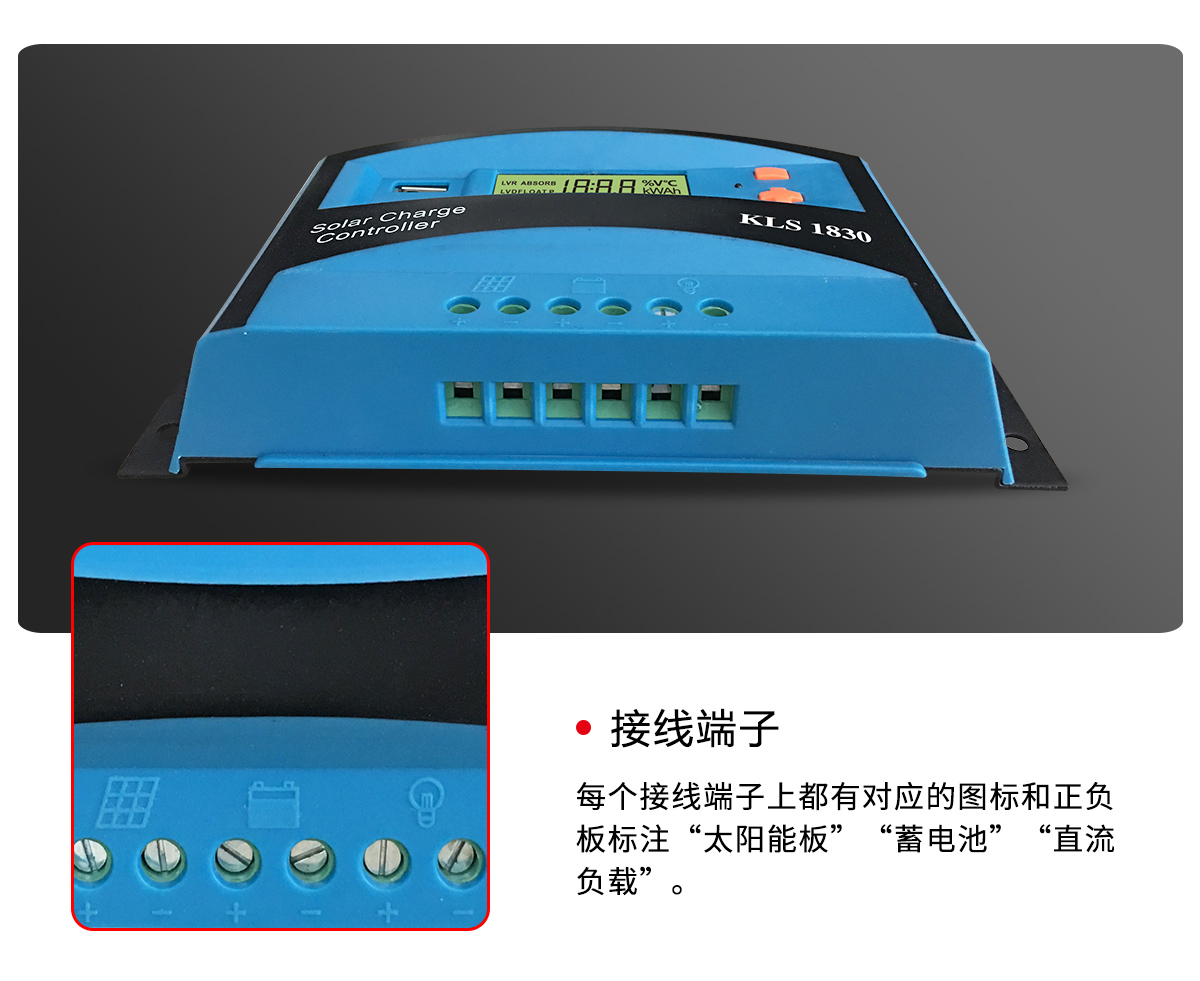

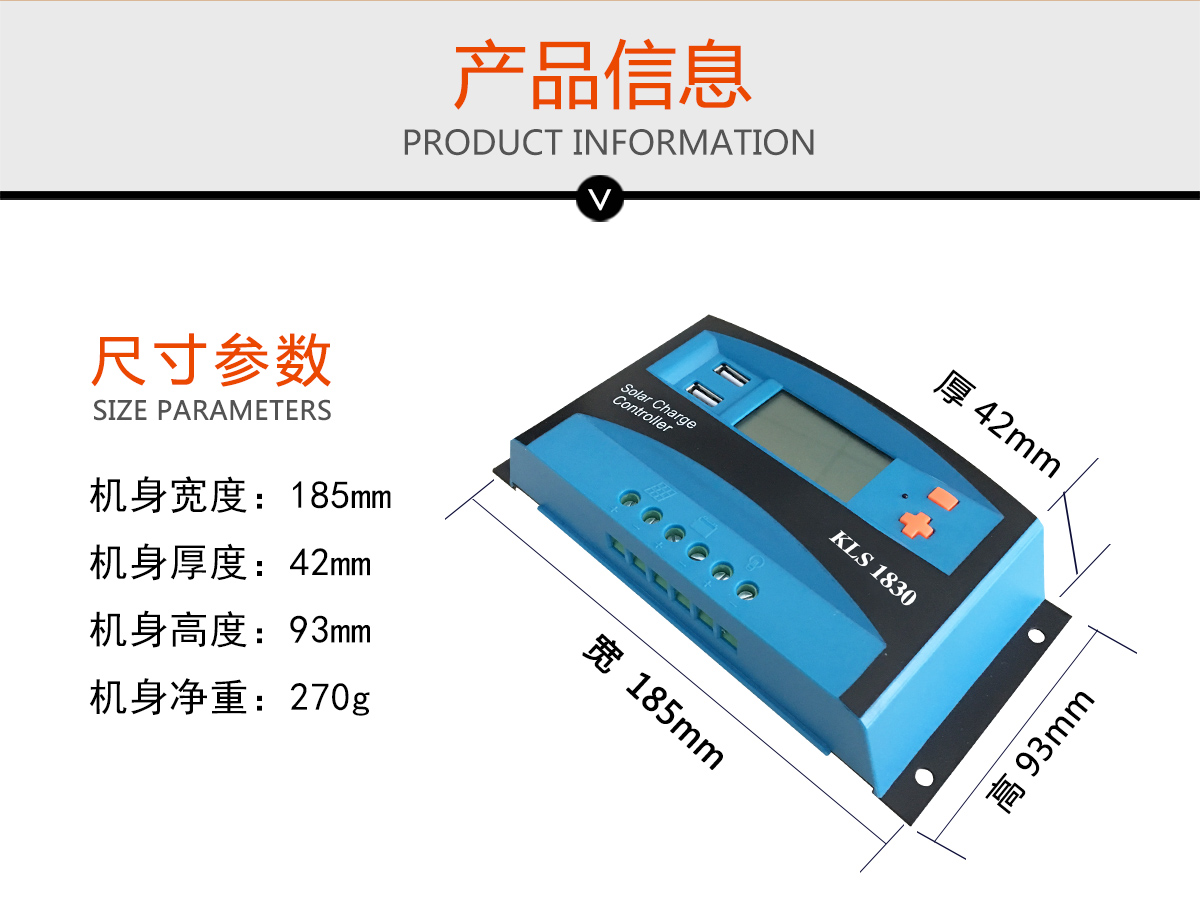

Hardware environment: compact size, working temperature -20 ℃~+60 ℃; The wiring follows the sequence of battery photovoltaic panel load.
Scenario and Qualification: Used for off grid photovoltaics, streetlights, RVs, and small household energy storage; CE and RoHS certification, supporting OEM/ODM customization.

►Product Details
