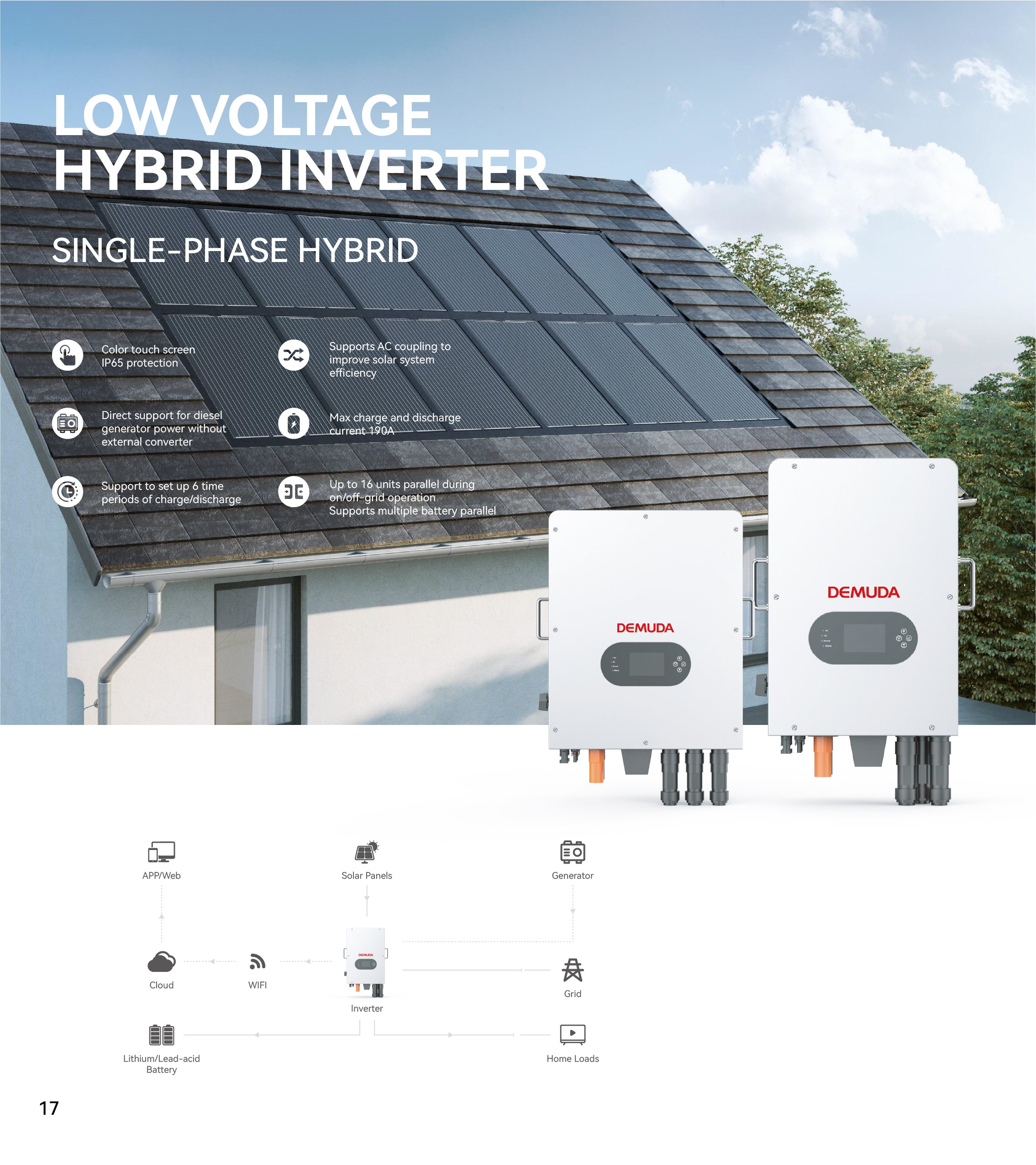

►Product Features
●Color touch screen IP65 protection
●Direct support for dieselgenerator power without external converter
●Support to set up 6 time periods of charge/discharge
●Supports AC coupling to improve solar system efficiency
●Max charge and dischargecurrent 190A
●Up to 16 units parallel during on/off-grid operation Supports multiple battery parallel

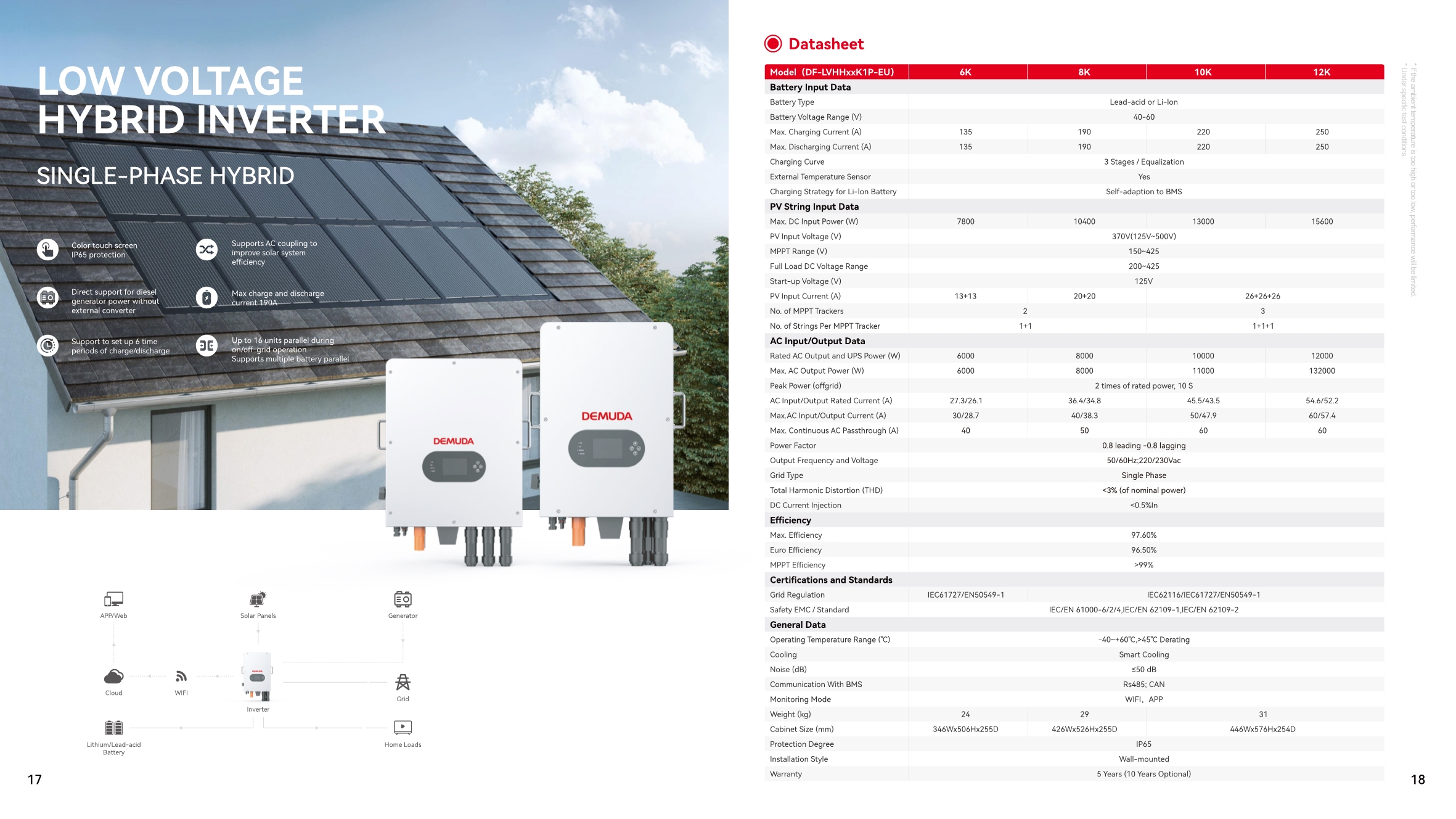

►Product Parameters
| Model (DMF-LV03LP1-EU) | 6K | 8K | 10K | 12K |
| Battery Input Data | ||||
| Battery Type | Lead-acid or Li-ion | |||
| Battery Voltage Range (V) | 40-60 | |||
| Max.Charging Current (A) | 135 | 190 | 220 | 250 |
| Max. Discharging Curmrent(A) | 135 | 190 | 220 | 250 |
| Charging Curve | 3 Stages/Equalzation | |||
| External Temperature Sensor | Yes | |||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||
| PV String Input Data | ||||
| Max.DC Input Power(W) | 7800 | 10400 | 13000 | 15600 |
| PV Input Vollage (V) | 370V(125V~500V) | |||
| MPPT Range(V) | 150~425 | |||
| Full Loed DC Voltage Range | 200~425 | |||
| Start-up Voltage (V) | 125V | |||
| PV Input Cumrent(A) | 13+13 | 20-20 | 26+26+26 | |
| No.of MPPT Trackers | 2 | 3 | ||
| No.of Strings Per MPPT Tracker | 1+1 | 1+1+1 | ||
| AC Input/Output Data | ||||
| Rated AC Output and UPS Powver (W) | 6000 | 8000 | 10000 | 12000 |
| Max.AC Output Power (W) | 6000 | 8000 | 11000 | 132000 |
| Peak Power (offigrid) | 2 times of rated power, 10 S | |||
| AC Input/Output Rated Current (A) | 27.3/26.1 | 36.4/34.8 | 45.5/43.5 | 54.6/52.2 |
| Max.AC Input/Output Current(A) | 30/28.7 | 40/38.3 | 50/47.9 | 60/57.4 |
| Max.Continueus AC Passthrough (A) | 40 | 50 | 60 | 60 |
| Power Factor | 0.8 leading-0.8 lagging | |||
| Output Frequency and Voltage | 50/60Hz;220/230Vac | |||
| Grid Type | Single Phase | |||
| Total Harmonic Distortion (THD) | <3% (of nominal power) | |||
| DC Current Injection | <0.5% in | |||
| Efficiency | ||||
| Max.Efficiency | 97.60% | |||
| Euro Efficiency | 96.50% | |||
| MPPT Efficiency | >99% | |||
| Certifications and Standards | ||||
| Grid Regulation | IEC61727/EN50549-1 | IEC62116/EC61727/EN50549-1 | ||
| Safety EMC/Standard | IEC/EN 61000-6/2/4,IEC/EN 62109-1,IEC/EN 62109-2 | |||
| General Data | ||||
| Operating Temperiture Range (℃C) | -40~+60℃,>45℃ Derating | |||
| Cooling | Smart Cooling | |||
| Noise (dB) | ≤50 dB | |||
| Communication With BMS | Rs485,CAN | |||
| Monitoring Mode | WIFI,APP | |||
| Weight (kg) | 24 | 29 | 31 | |
| Cabinet Size (mm) | 346Wx506Hx255D | 426Wx526Hx255D | 446Wx576Hx254D | |
| Protection Degree | IP65 | |||
| Installation Style | Wall-mounted | |||
| Warranty | S Years (10 Years Optional) | |||
