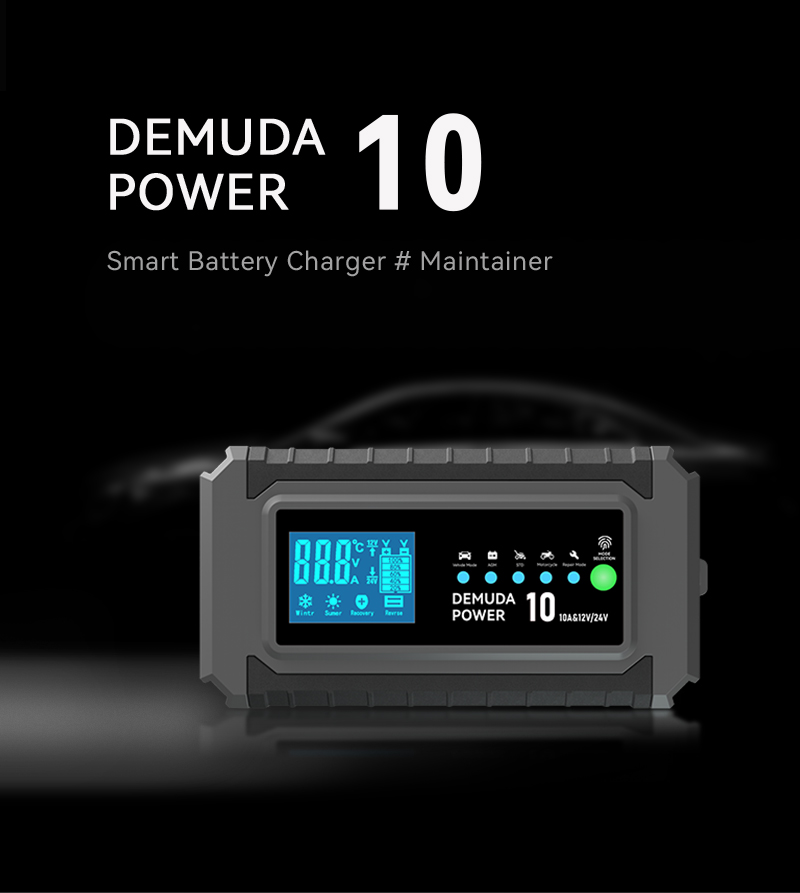

10A 12V 24V Smart Battery Charger
Product introduction

DC-10 has a one click repair function, which can repair damaged and depleted batteries. It supports AGM, GEL, STD and other batteries, and has four adjustable current levels of 10A, 8A, 5A, 3A. Adopting multi-stage charging mode, including desulfurization, constant current, constant voltage, pulse, float charging mode, and automatic stop when fully charged. It has multiple protection functions, such as overheating, undervoltage, overvoltage, overcurrent, flame retardant, short circuit, reverse polarity protection, etc., ensuring safe use. Suitable for various devices such as vehicles, AGM batteries, STD batteries, motorcycles, etc.

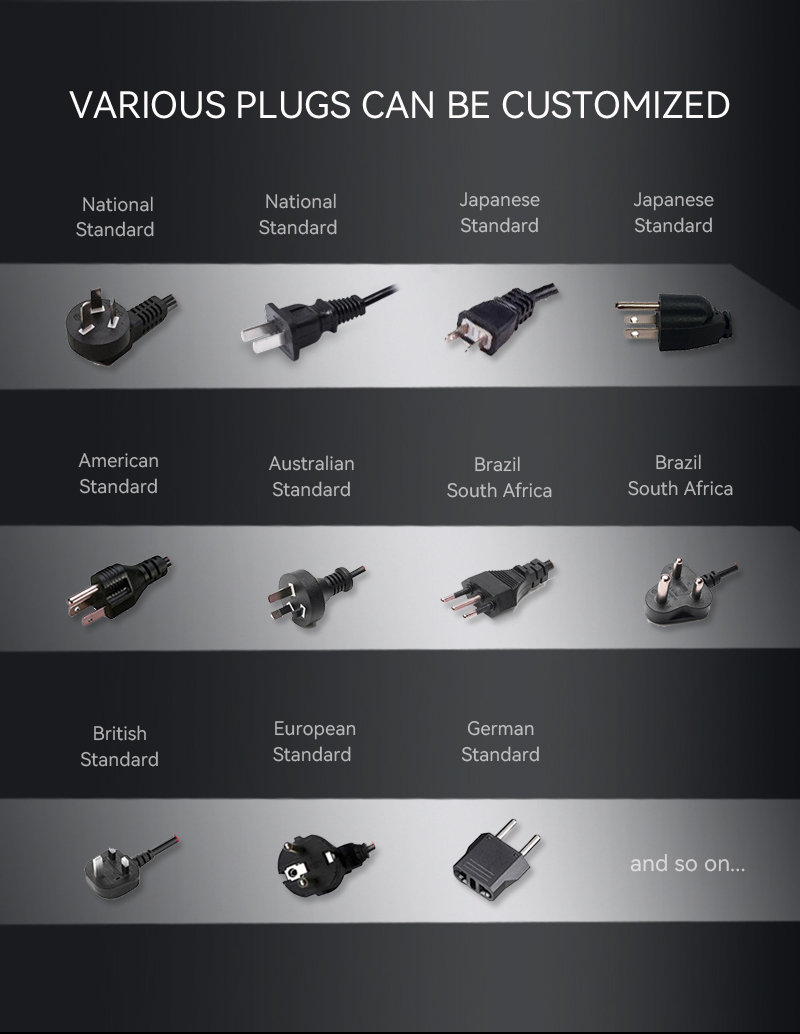

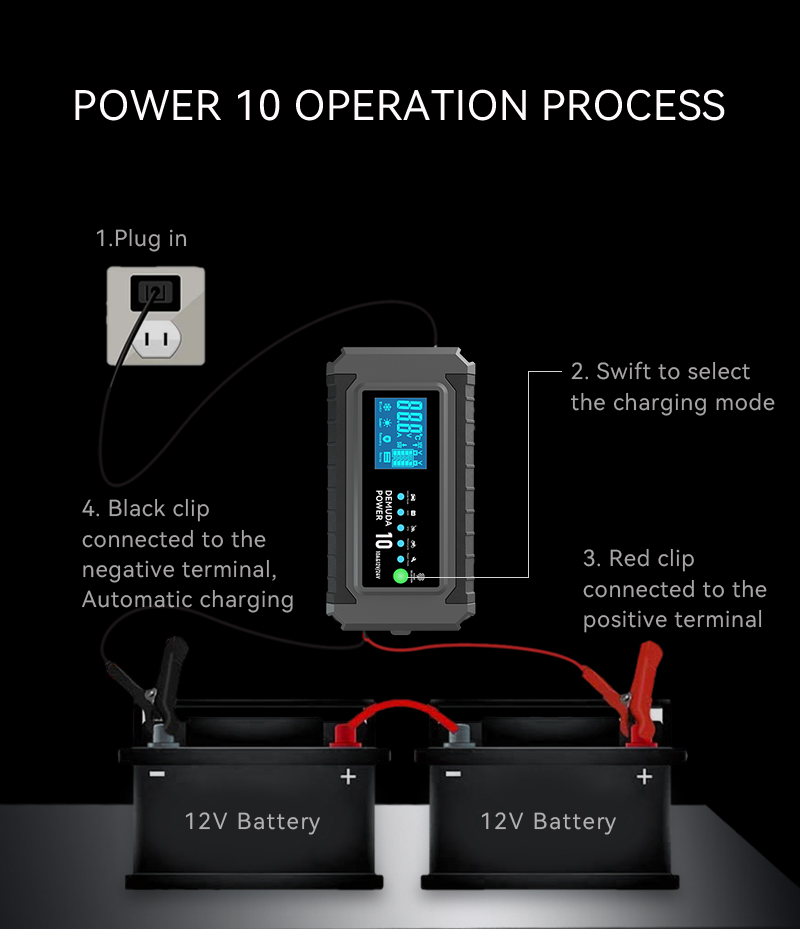

The operation process is simple, just plug in, select the charging mode, and connect the positive and negative clips to automatically charge. Simultaneously supporting customization of multiple plugs to meet the usage needs of different regions.




Quantity:
Product details
►Product Features

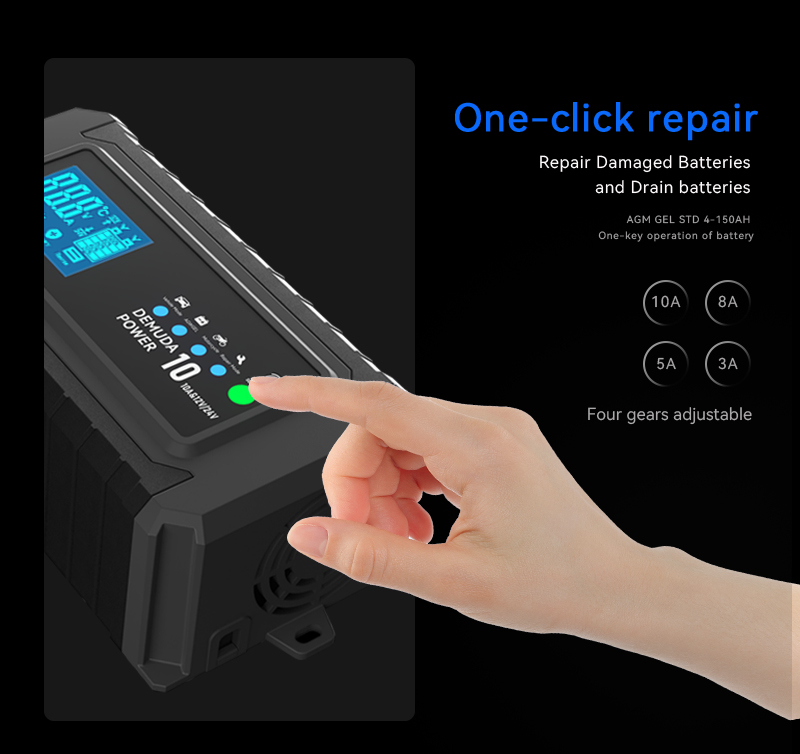

One-click repair:Repair Damaged Batteriesand Drain batteries

●Automatic Stop When Full Charged

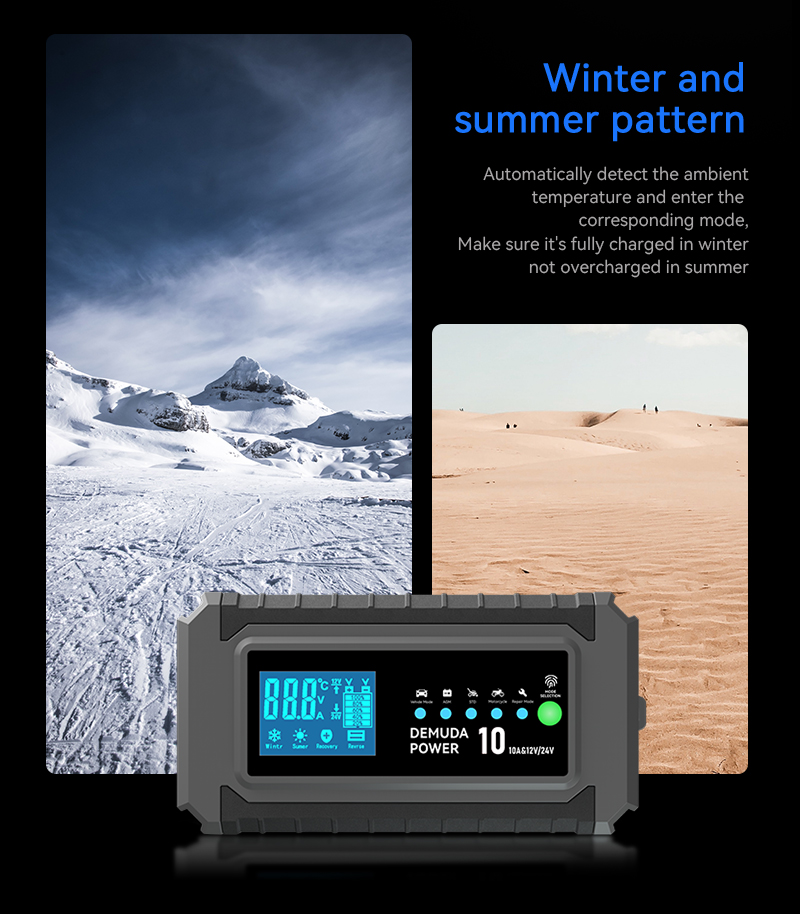

●Automatically Thermal Compensation

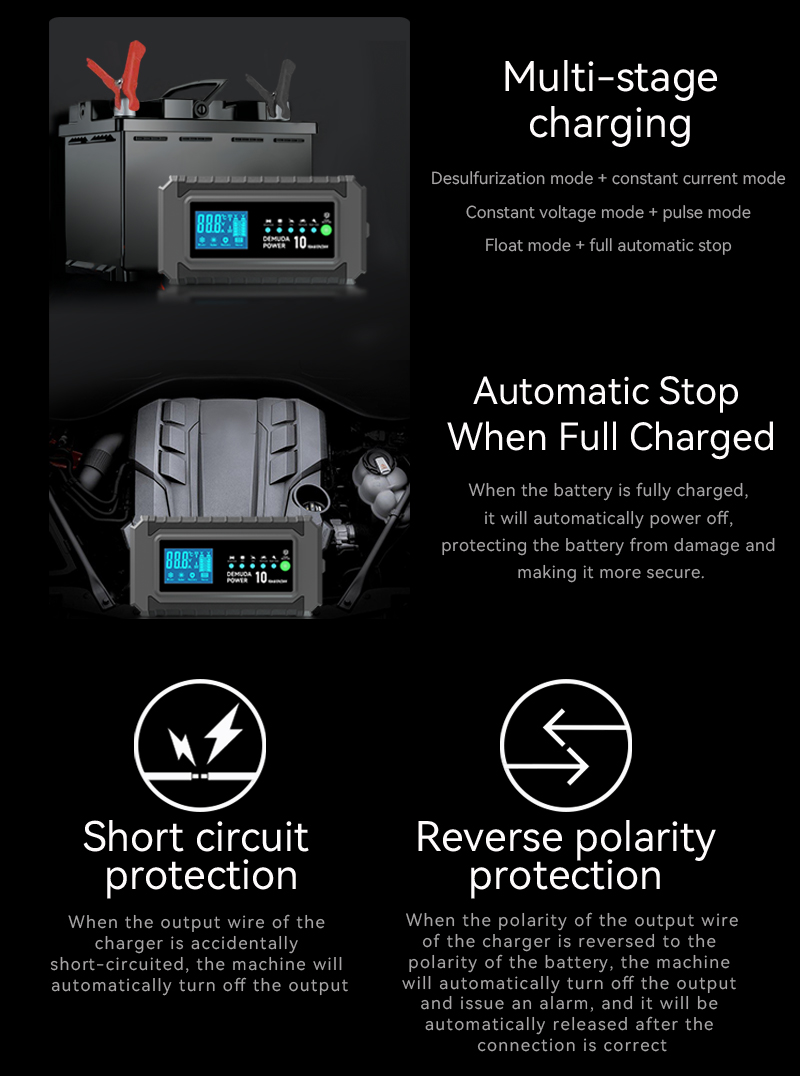

●Desulphation、Constant current charging、Constant voltage charging、Pulse charging、Floating charging、Auto-off

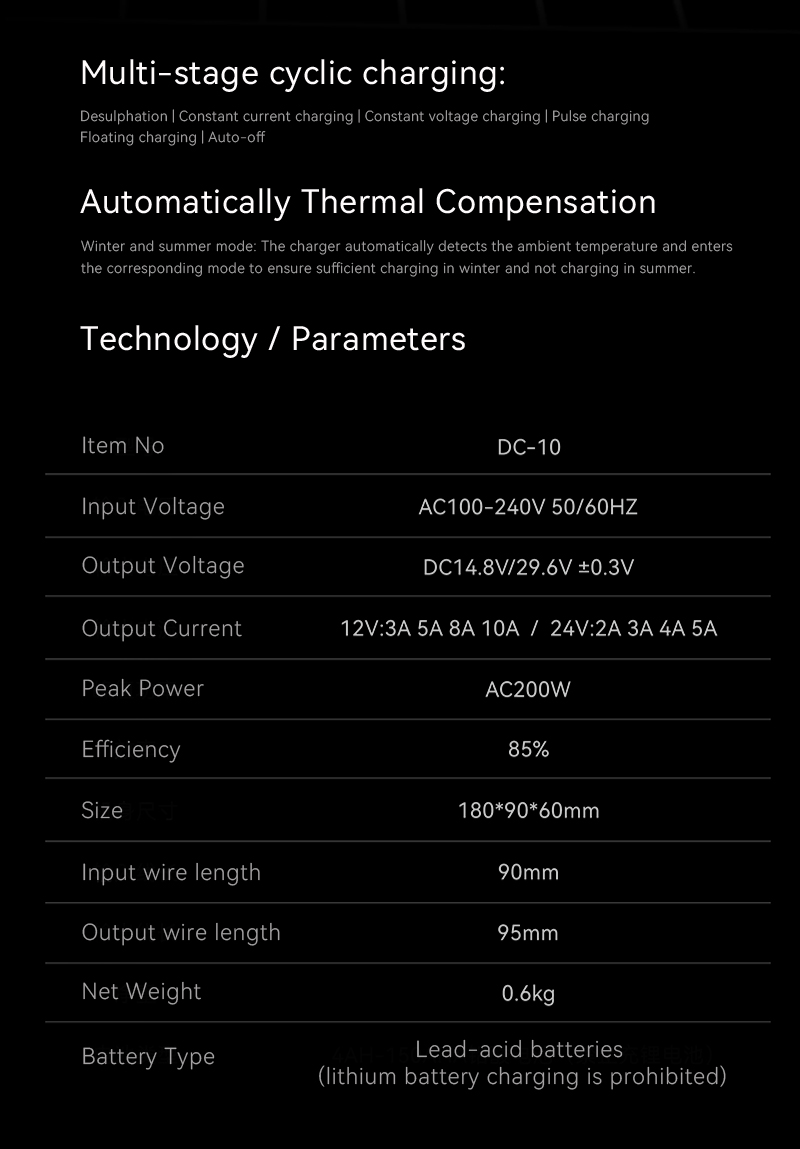

►Product Parameters

ltem No

DC-10
Input VoltageAC100-240V 50/60HZ
Output VoltageDC14.8V/29.6V±0.3V
Output Current12V:3A 5A 8A 10A / 24V:2A 3A 4A 5A
Peak PowerAC200W
Efficiency85%

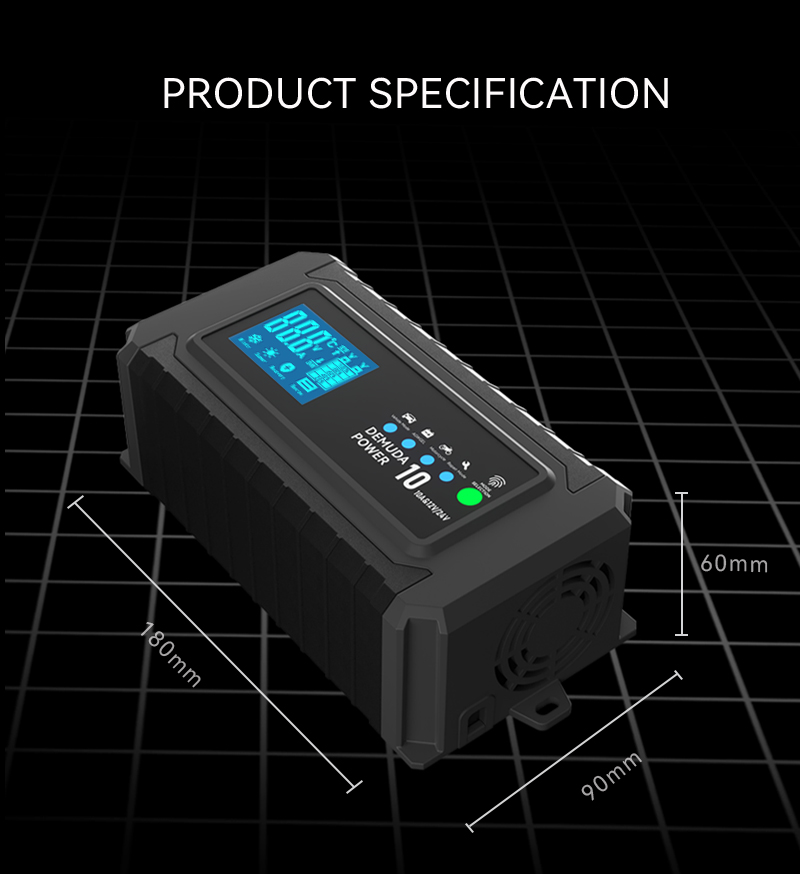

Size180*90*60mm
Input wire length90mm
Output wire length95mm
Net Weight0.6kg
Battery TypeLead-acid batteries(lithium battery charging is prohibited)

►Product Details
