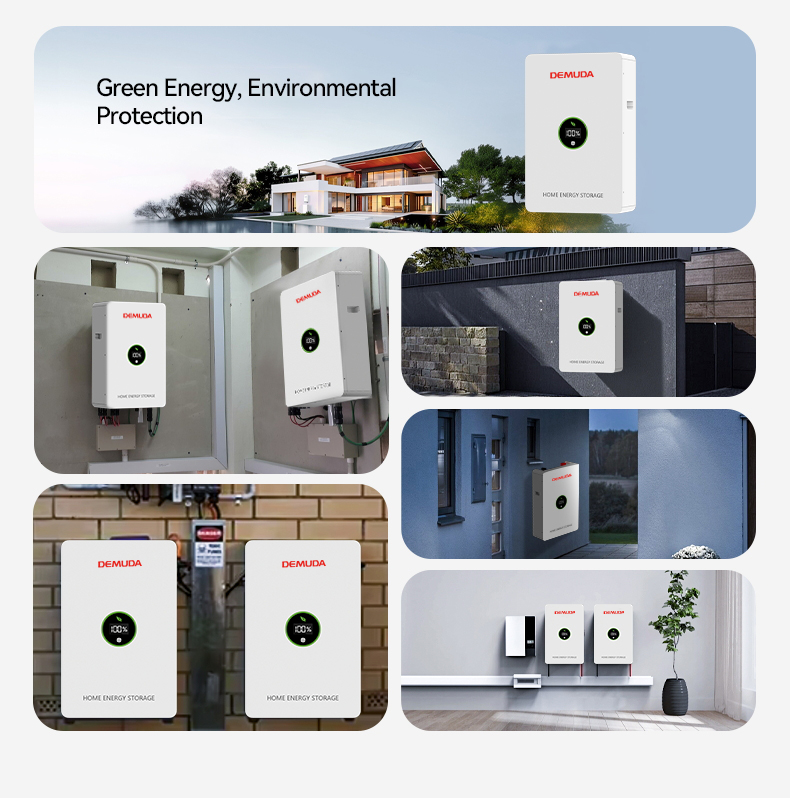

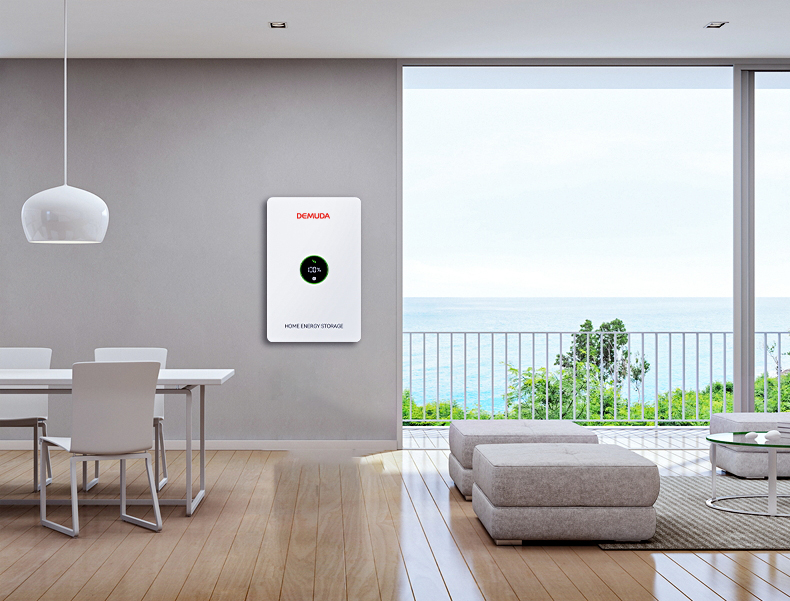

DEMUDA low-voltage wall mounted lithium-ion batteries use reliable lithium iron phosphate (LFP) technology, designed specifically to meet residential energy needs. Each battery pack is an independent unit and equipped with a dedicated battery management system (BMS), supporting multiple installation methods to expand the system. It has excellent cycle life to ensure long-lasting preservation of the house. Its communication interface is CAN and the protection level reaches IP66. The nominal energy is 5kWh/10kWh optional, the nominal voltage is 51.2V, and the design capacity is 100Ah/200Ah. It has passed CE, IEC, UN38.3, and MSDS certifications.
●Security:Using safe and eco-friendly LiFePO4 battery, with MSDS,UN38.3, ROHS, IEC62619, UL

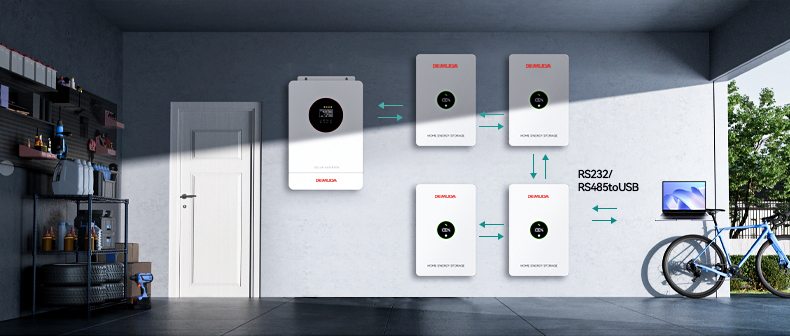

●Capacity Expandable:Support for up to 15 batteries in parallel
●Professional Energy Storage Technology：100% high-precision control, reliability and multi-dimensional protection
●Smart Energy Management：Equipped with BMS Battery management system
to intelligenty manage and maintain each battery unit
●Maintenance-Free：6000+ cycles, 10-years service life

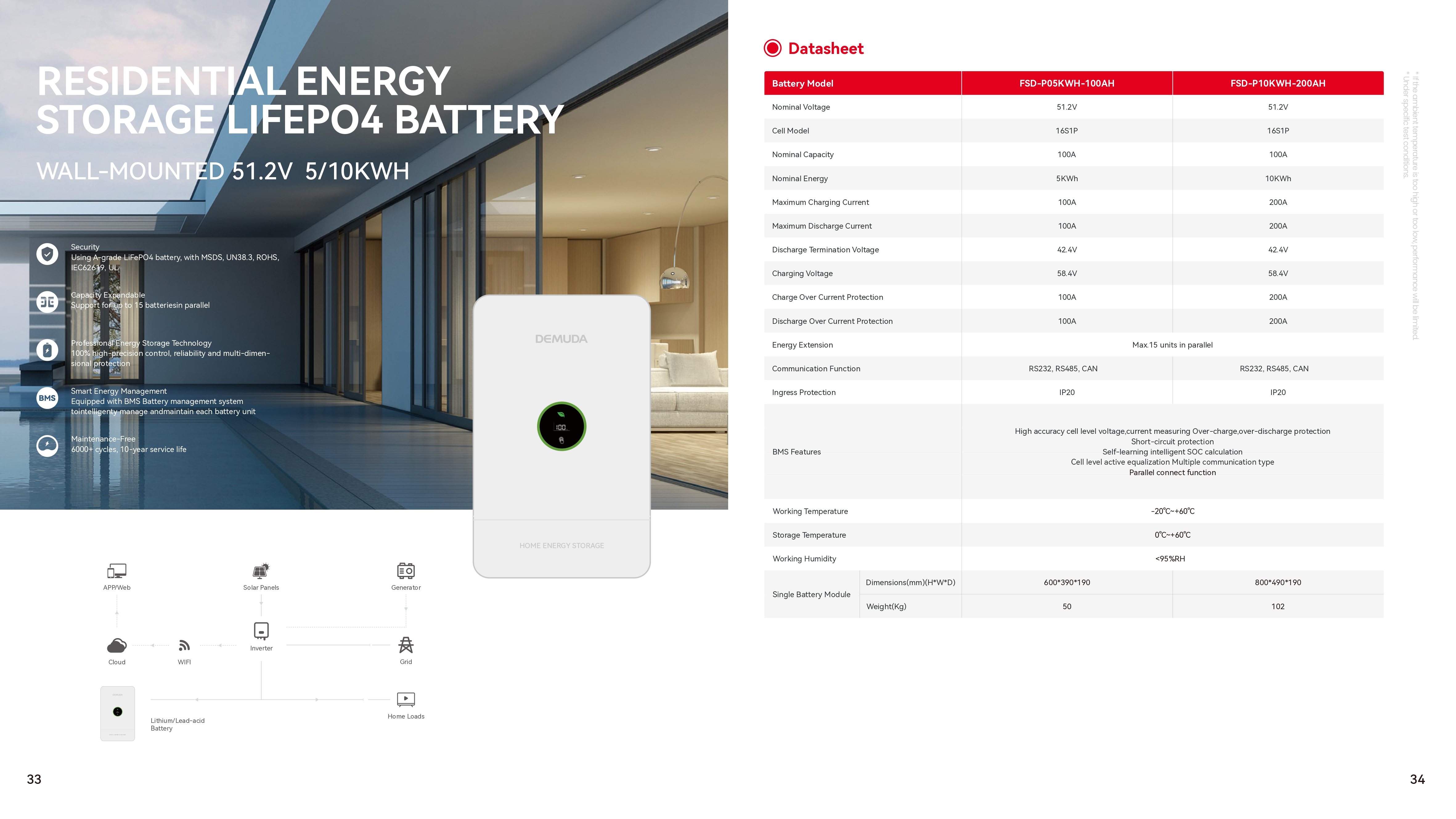

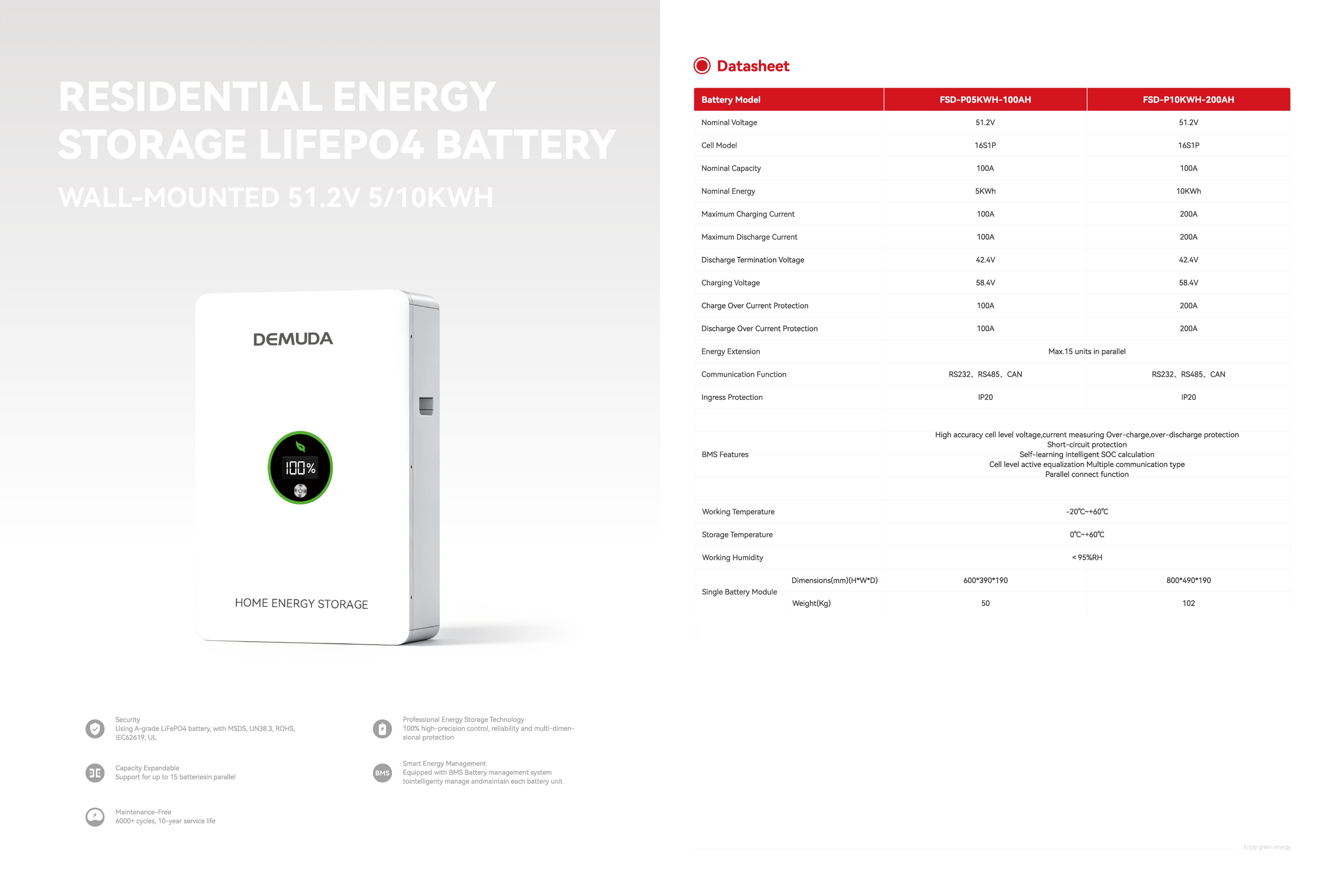

►Product Parameters
| Battery Model | FSD-P05KWH-100AH | FSD-P10KWH-200AH | |
| Nominal Voltage | 51.2V | 51.2V | |
| Cell Model | 16S1P | 16S1P | |
| Nominal Capacity | 100A | 100A | |
| Nominal Energy | 5KWh | 10KWh | |
| Maximum Charging Current | 100A | 200A | |
| Maximum Discharge Current | 100A | 200A | |
| Discharge Termination Voltage | 42.4V | 42.4V | |
| Charging Veltage | 58.4V | 58.4V | |
| Charge Over Current Protection | 100A | 200A | |
| Discharge Over Current Protection | 100A | 200A | |
| Energy Extension | Max.15 units in parallel | ||
| Communication Function | RS232, RS485, CAN | RS232, RS485, CAN | |
| Ingress Protection | IP20 | IP20 | |
| BMS Features | High accuracy cell level voltage,current measuring Over-charge,over-discharge protection Short-circuit protection Self-learning intelligent SOC calculation Cell level active equalization Multiple communication type Parallel connect function | ||
| Working Temperature | -20℃~+60℃ | ||
| Storage Temperature | 0℃~+60℃ | ||
| Working Humidity | <95%RH | ||
| Single Battery Module | Dimensionslmm)(W*D*H) | 600*390*171 | 800*491*2033 |
| Weight(kg) | 50 | 102 | |
