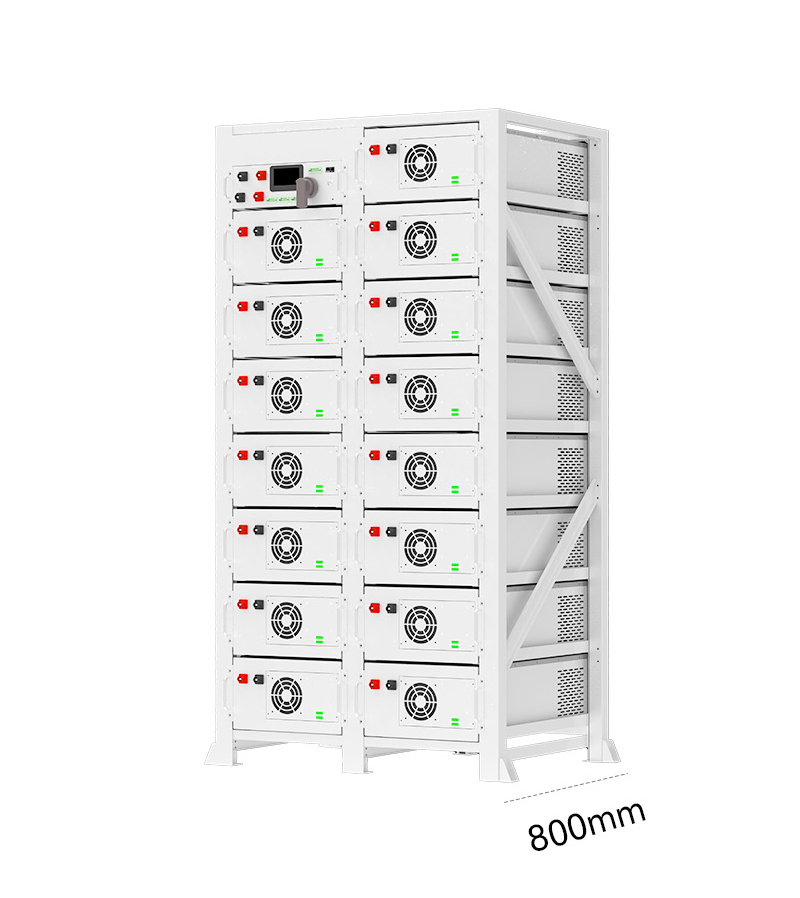

143kWh-215kWh High Voltage Rack Mounted Battery

Product introduction

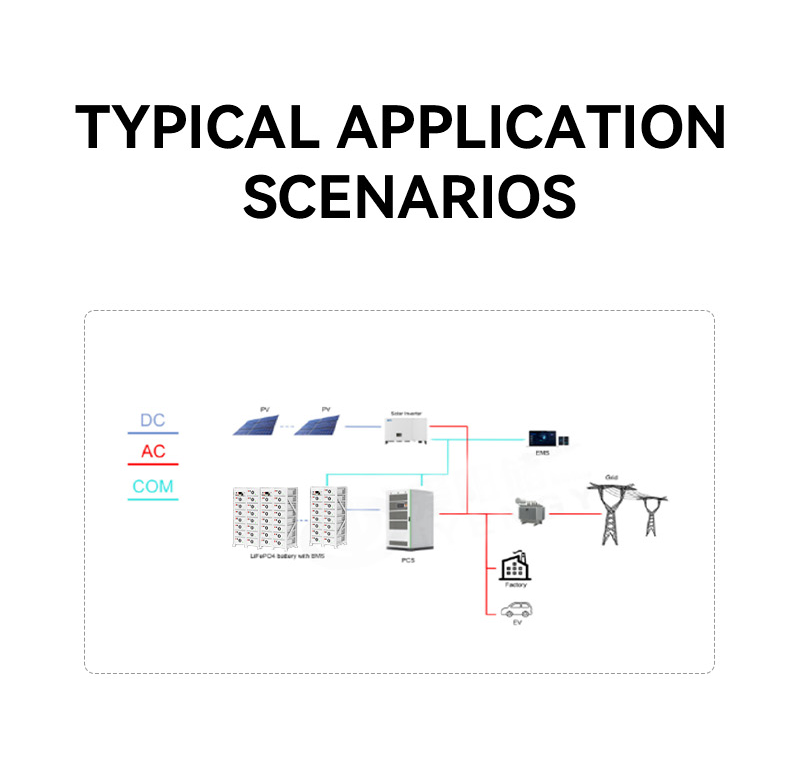

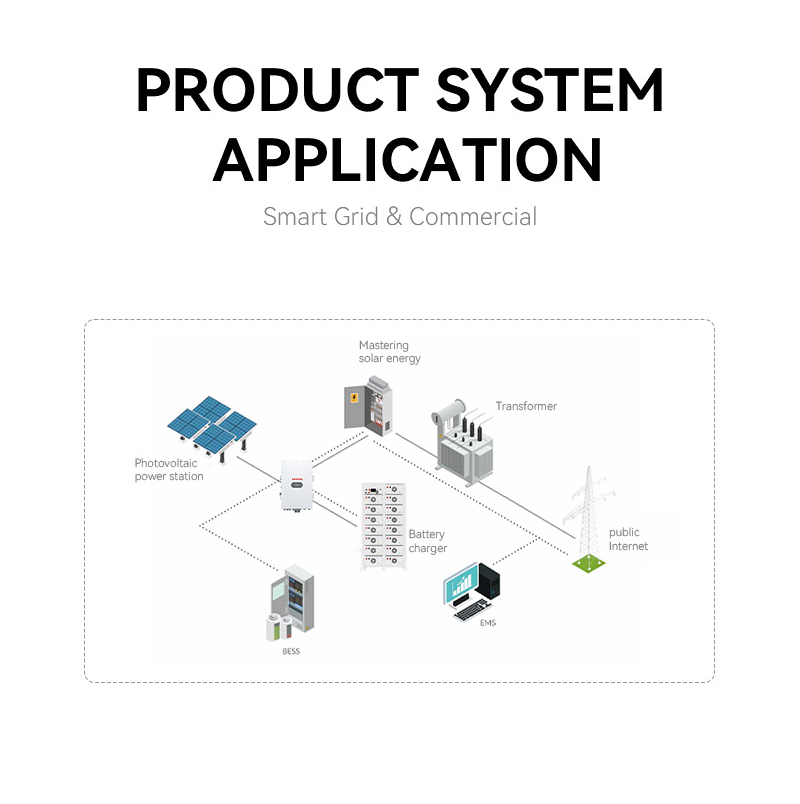

This is a high-voltage rack-mounted lithium iron phosphate (LiFePO4) battery with an energy range of 143 - 215kWh. It has the characteristics of supporting series connection, high reliability and high safety, adopts a two-level / three-level architecture, and the main control is integrated in the box. The operating temperature is 0 - 55℃ for charging and - 15 - 60℃ for discharging. The communication interface is RS485/CAN, which is suitable for energy storage scenarios.

Quantity:

Inquire

Add to Basket Download

Product details

►Product Features

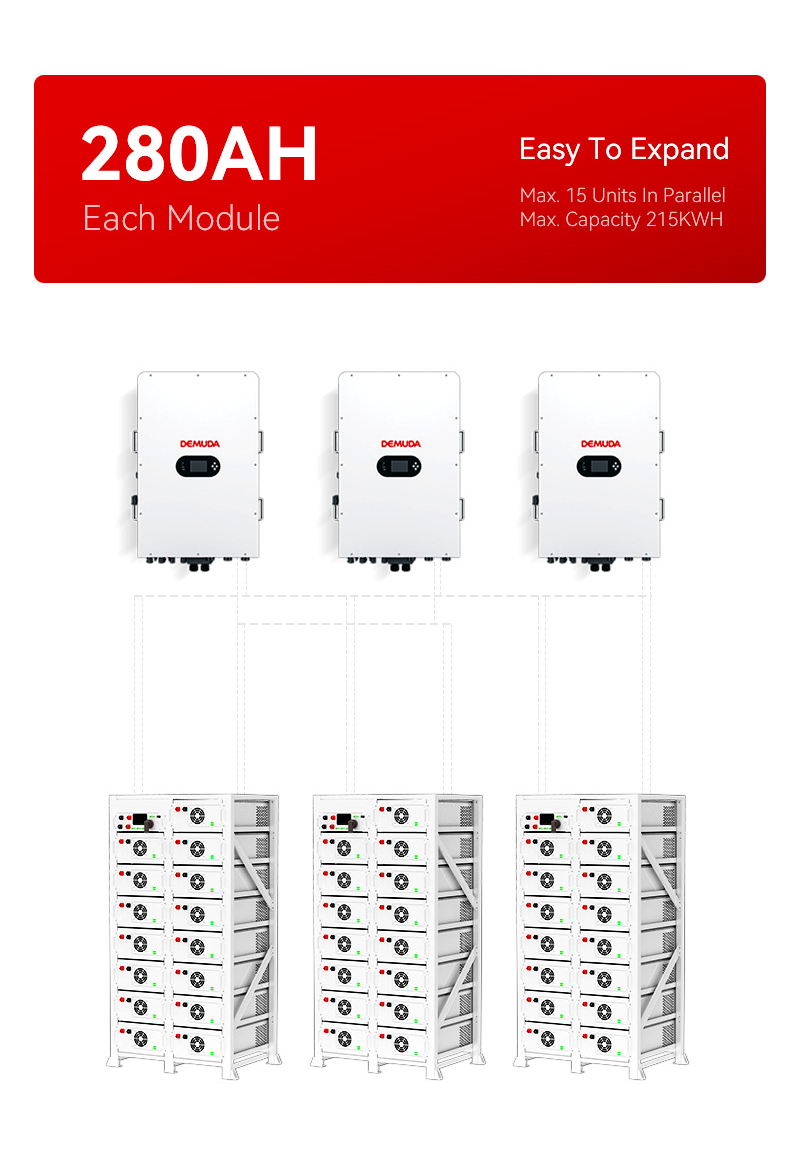

●Support In Series

●High Reliability & High Security

●Two-Level And Three-Level Architecture

●Master Integrated Combiner Box

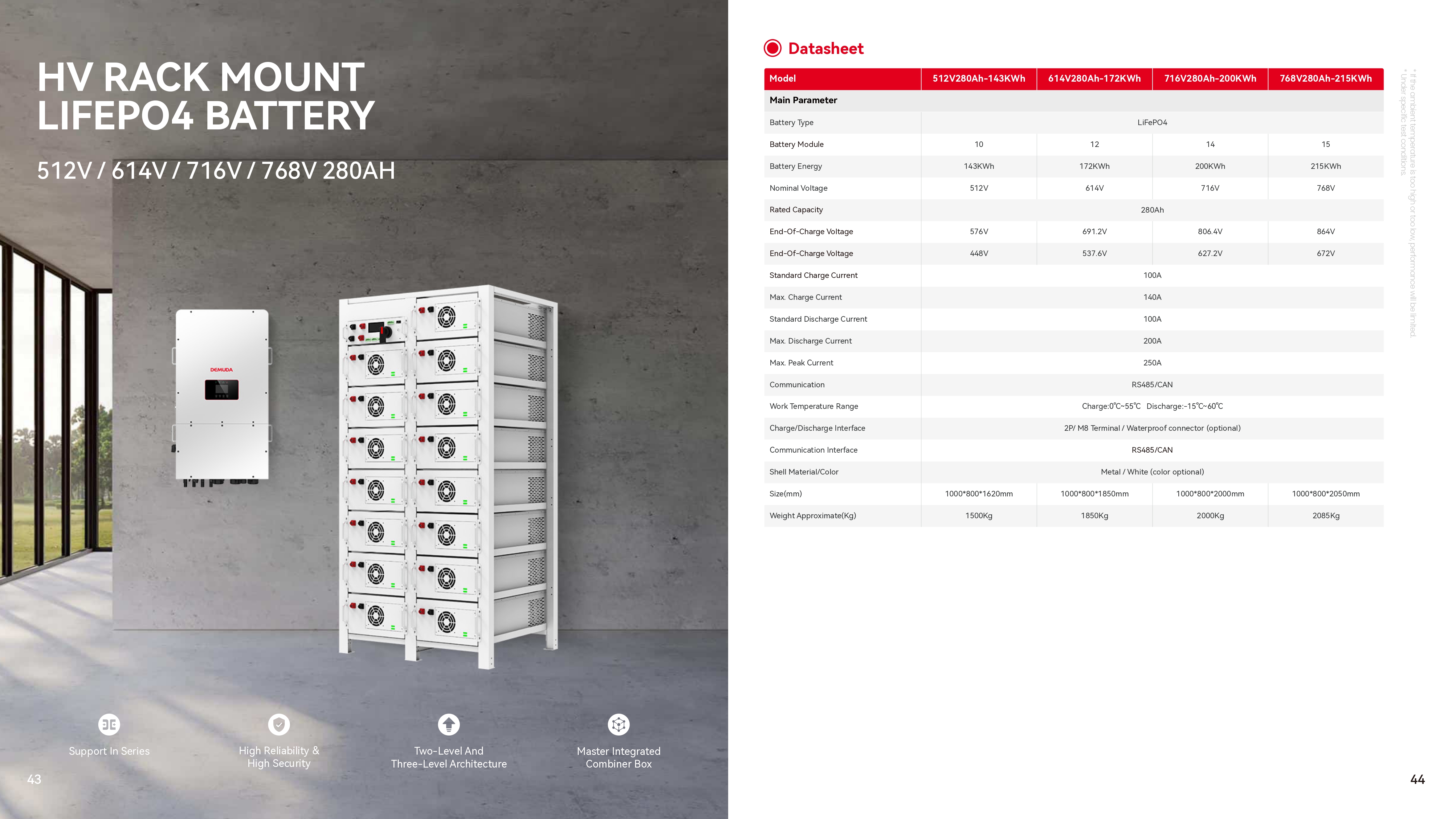

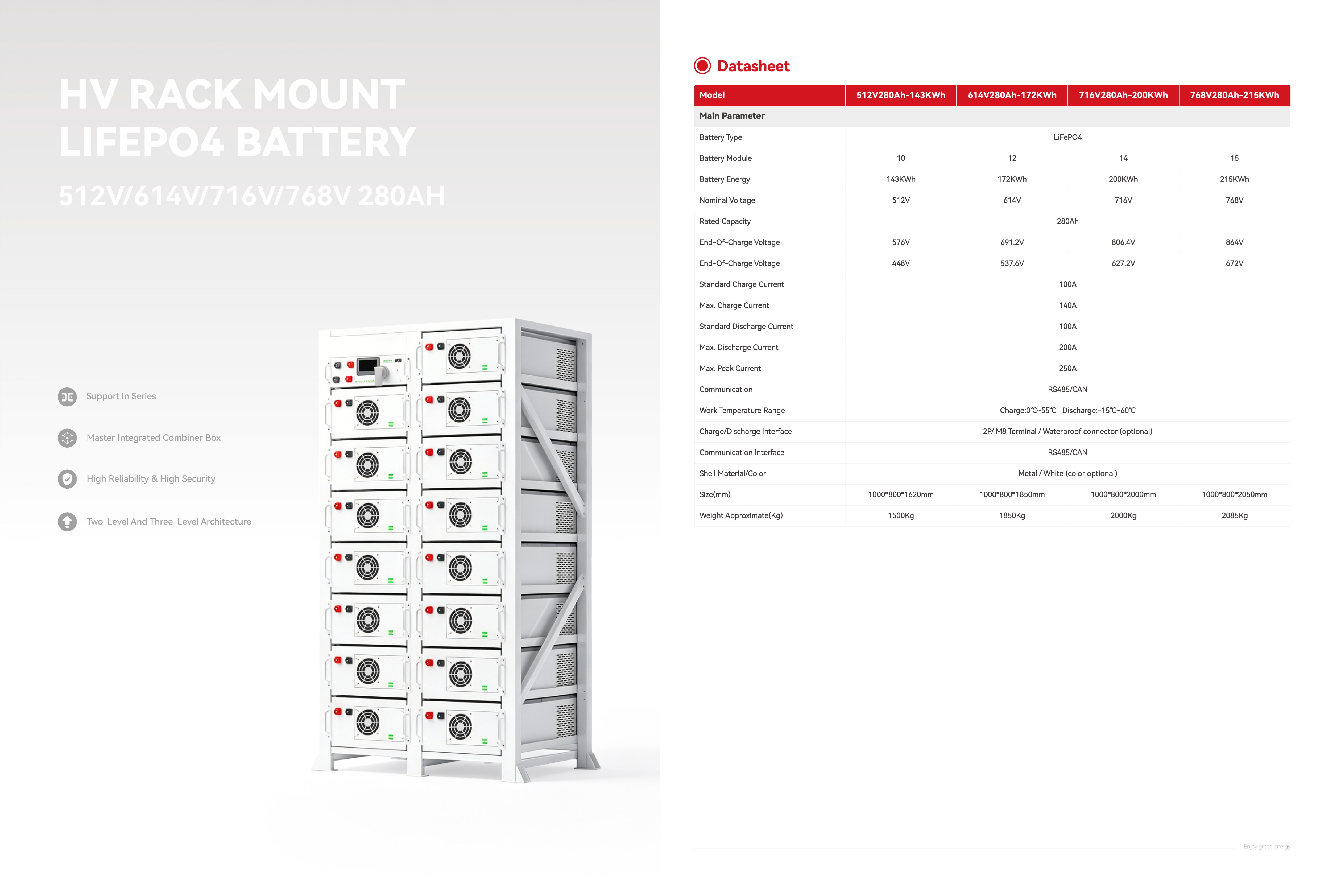

►Product Parameters

Model	512V280Ah-143KWh	614V280Ah-172KWh	716V280Ah-200KWh	768V280Ah-215KWh
Main Parameter
Battery Type	LiFePO4
Battery Module	10	12	14	15
Battery Energy	143KWh	172KWh	200KWh	215KWh
Nominal Voltage	512V	614V	716V	768V
Rated Capadity	280Ah
End-Of-Charge Voltage	576V	691.2V	806.4V	864V
End-Of-Charge Voltage	448V	537.6V	627.2V	672V
Standard Charge Current	100A
Max.Charge Current	140A
Standard Discharge Current	100A
Max.Discharge Cumrent	200A
Max.Peak Current	250A
Communication	RS485/CAN
Work Temperature Range	Charge:0℃~55℃ Discharge:-15℃-60℃
Charge/Discharge Interface	2P/ M8 Terminal / Waterproof connector (optional)
Communication Interface	RS485/CAN
Shel Material/Color	Metal / White (color optional)

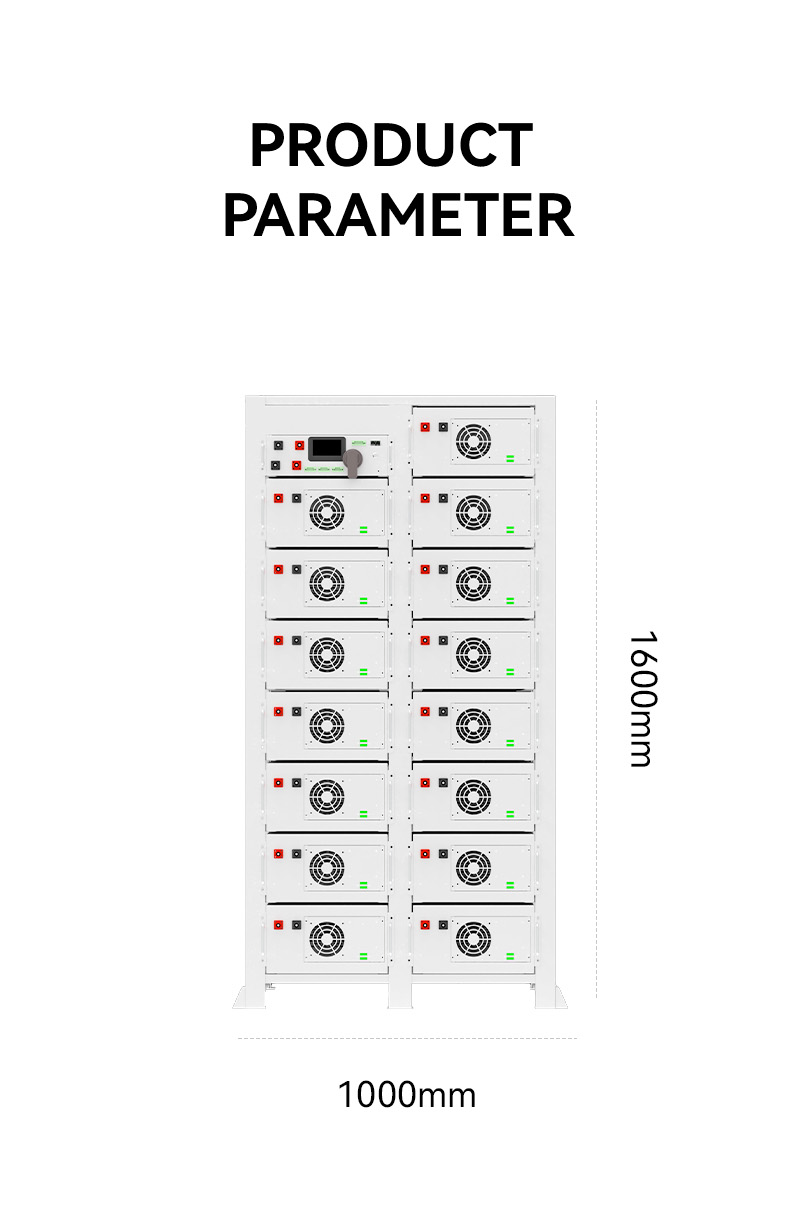

Size(mm)	10008001620mm	10008001850mm	10008002000mm	10008002050mm
Weight Approaimate(Kg)	1500Kg	1850Kg	2000kg	2085kg
