This lithium iron phosphate battery is one of new energy storage products developed andproduced by DEMUDA, it can be used to support reliable power for various types of equipmentand systems.
This battery is especially suitable for application scene of high power, limited installationspace and long cycle life.This battery has buit-in BS battery management system, which can manage and monitorcells information including voltage, current and temperature. What's more, BMS can balancecells charging and discharging to extend cycle life.64 pcs batteries pack can connect in parallel for larger capacity and longer power supporting duration requirements
●Low Voltage Battery,Capacity 105Ah
●Scalability:Up to 32 units in parallel without external setup
●Cycle Life:≥6000(25℃+2℃,0.3C/0.3C 90%DOD, 70%EOL)
●Installation:19-inch standard rack, floor-standing, wall-mounted
●Warranty:5/10 years

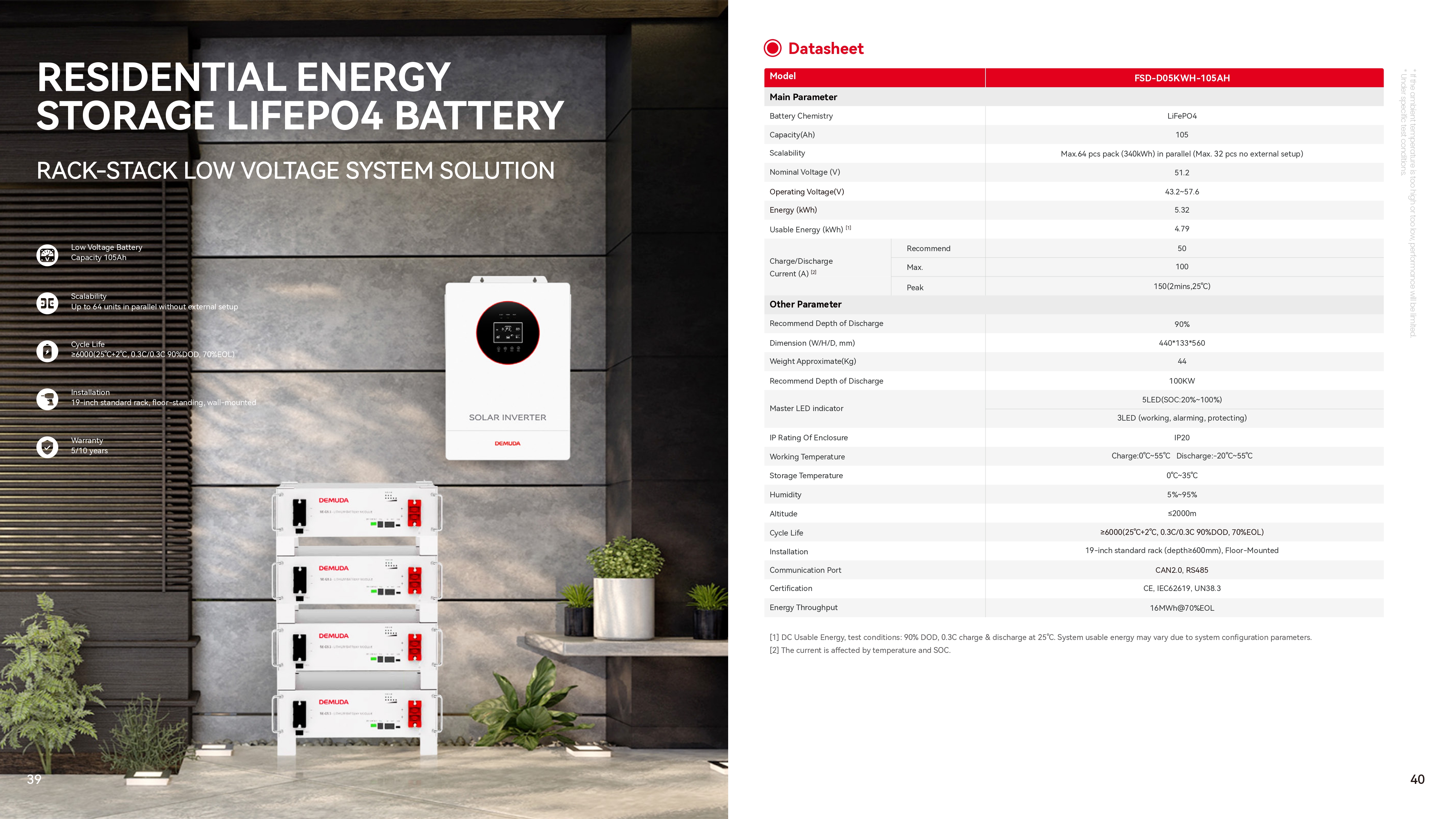

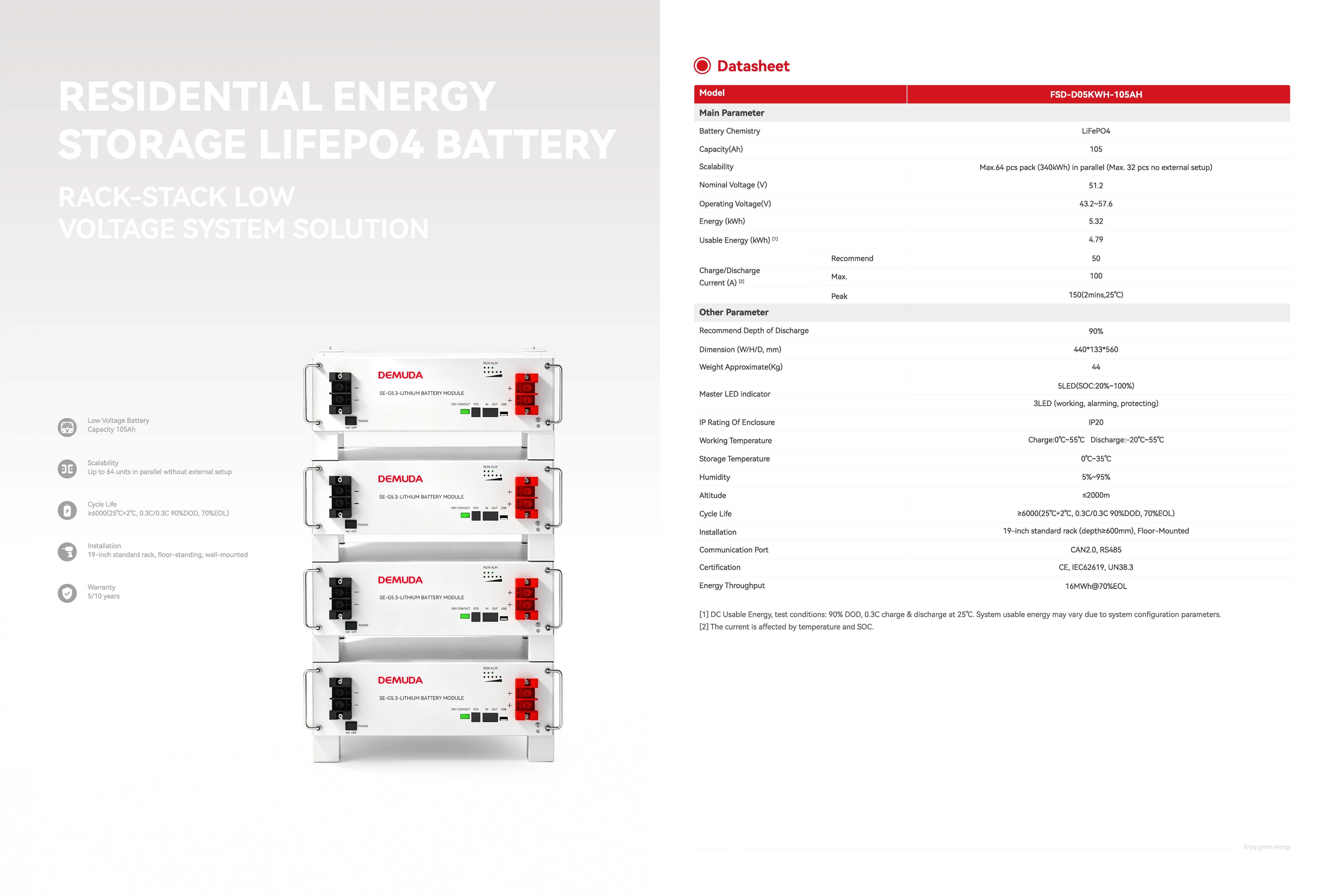

►Product Parameters
| Model | FSD-D05KWH-105AH | |
| Main Parameter | ||
| Battery Chemistry | LiFePO4 | |
| Capadity(Ah) | 105 | |

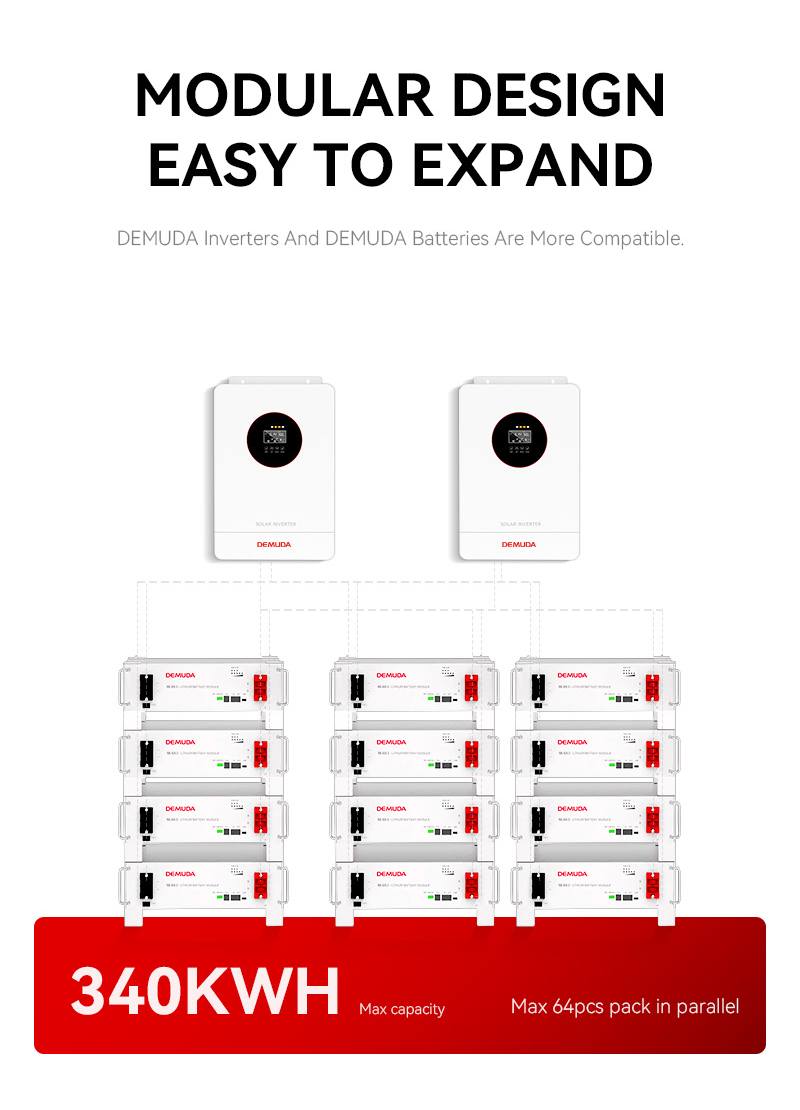

| Scalubilty | Max.64 pcs pack (340kWh) in parallel (Max. 32 pcs no external setup) | |
| Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 43.2-57.6 | |
| Energy (kwh) | 5.32 | |
| Usable Energy (kwh) | 4.79 | |
| Charge/Discharge Current (A) | Recommend | 50 |
| Max. | 100 | |
| Peak | 150(2mins,25℃) | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |

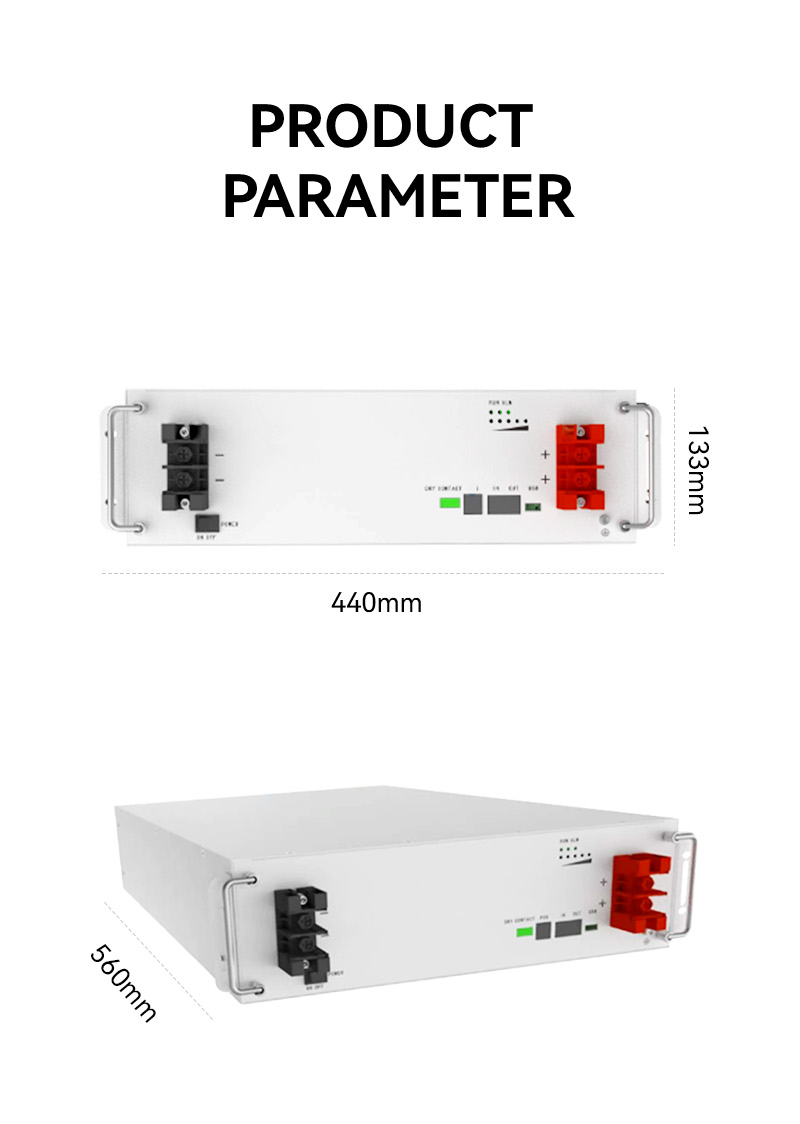

| Dimersion (W/H/D,mm) | 440*133*560 | |
| Weight Approsimate(kg) | 44 | |
| Recommend Depth of Discharge | 100KW | |
| Master LED indicator | 5LED(SOC:20%~100%) | |
| 3LED (working, alarming, protecting) | ||
| IP Rating Of Enclosure | IP20 | |
| Working Temperature | Charge:0℃~55℃ Discharge:-20℃~55℃ | |
| Storage Temperature | 0℃-35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃+2℃, 0.3C/0.3C 90%DOD, 70%EOL) | |
| Installation | 19-inch standard rack (depth≥600mm), Floor-Mounted | |
| Communication Port | CAN2.0,RS485 | |
| Certification | CE,IEC62619,UN38.3 | |
| Energy Throughput | 16MWh@70%EOL | |
►Product Details
