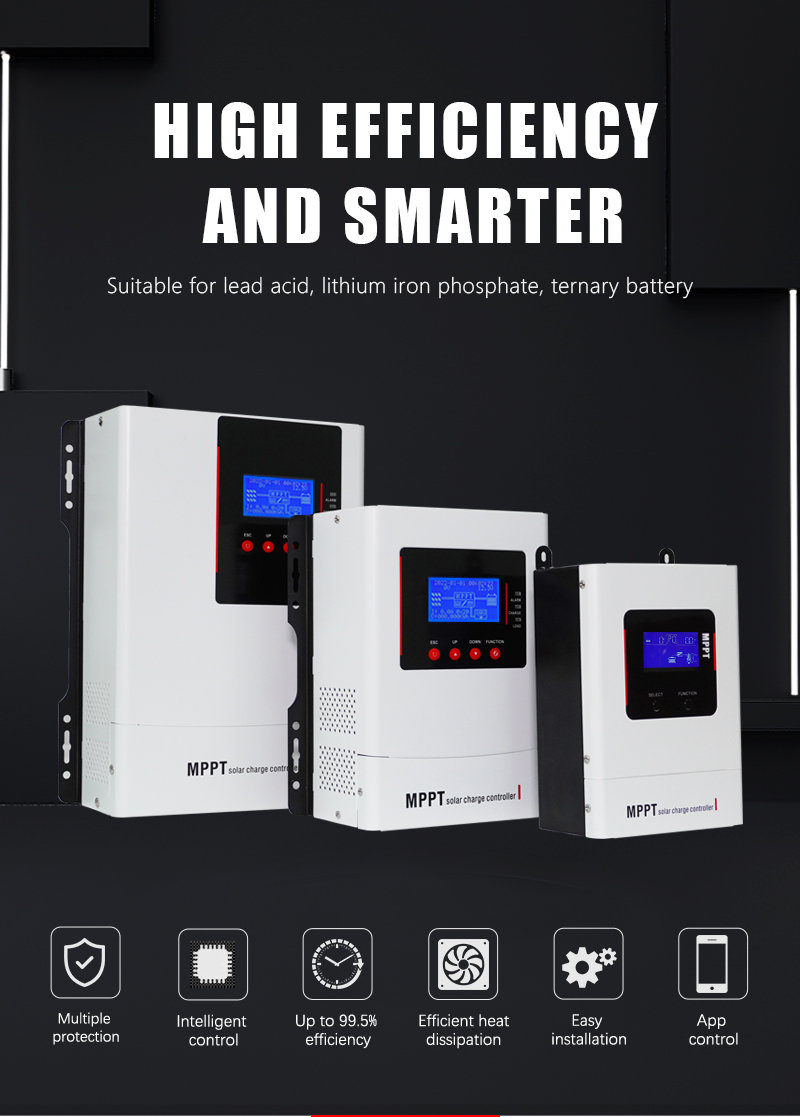

►Product Features
●Multiple Protection
●Easy Installation
●Up To 99.5% Efficiency
●Intelligent Control
●App Control
●Efficient Heat Dissipation

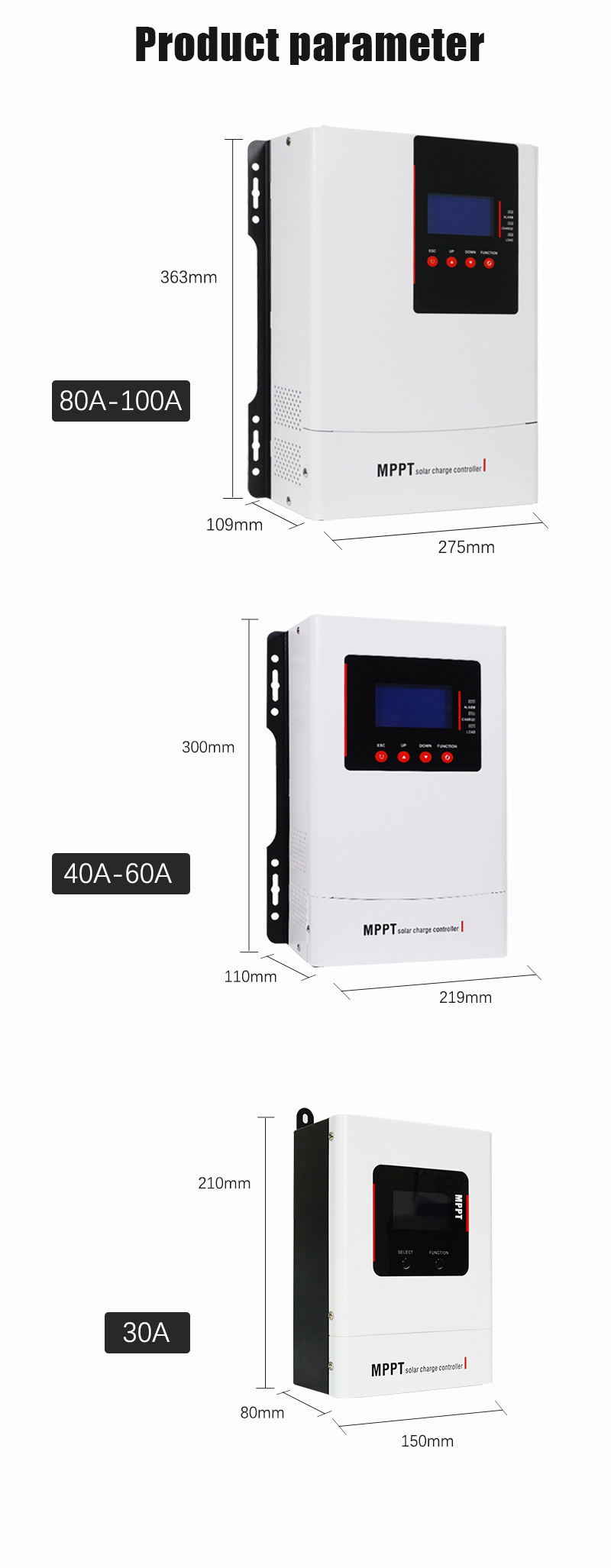

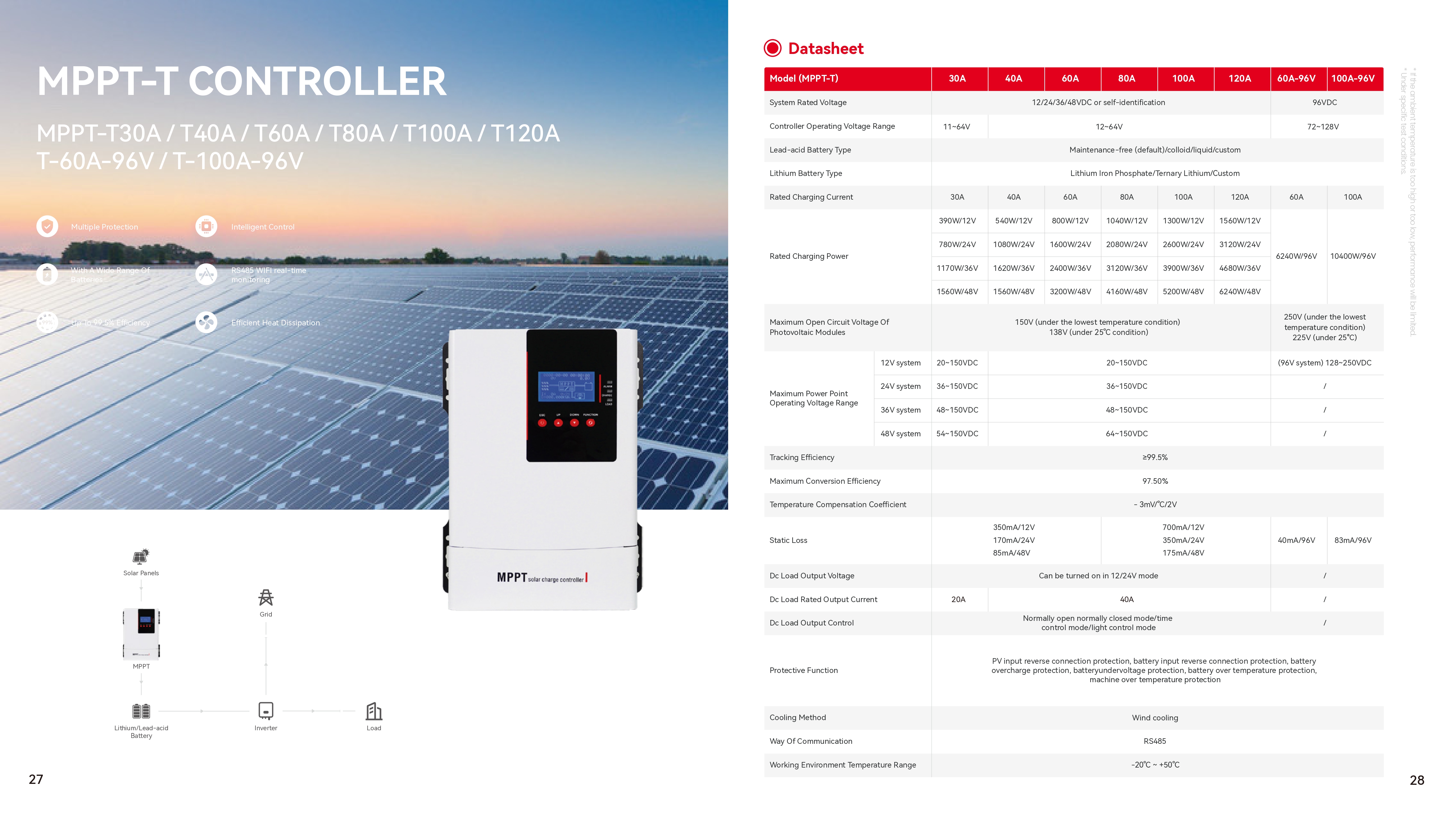

►Product Parameters
| Model (MPPT-T) | 30A | 40A | 60A | 80A | 100A | 120A | 60A-96V | 100A-96V | |
| System Rated Voltage | 12/24/36/48VDC or self-identification | 96VDC | |||||||
| Controller Operating Voltage Range | 11-64V | 12-64V | 72-128V | ||||||

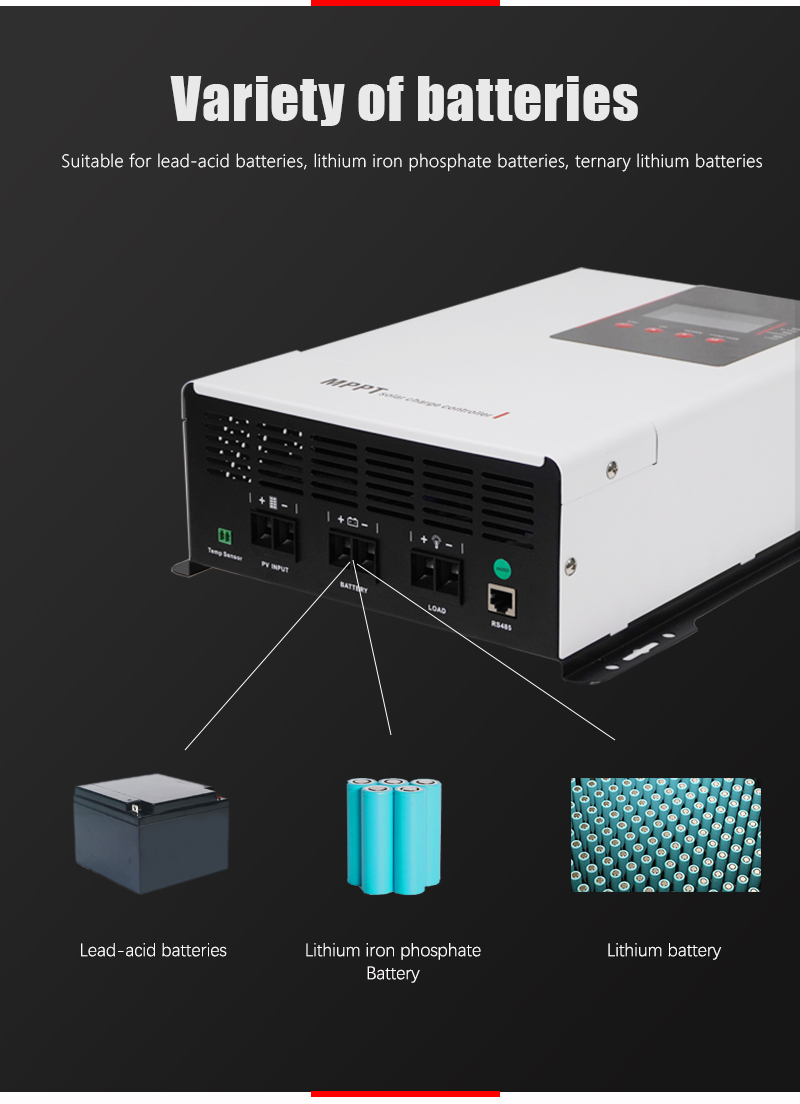

| Lead-acid Battery Type | Maintenance-free (default)/colloid/liquid/custom | ||||||||
| Lithum Battery Type | Lithium Iron Phosphate/Ternary Lithium/Custom | ||||||||
| Rated Charging Current | 30A | 40A | 60A | 80A | 100A | 120A | 60A | 100A | |
| Rated Charging Power | 390W/12V | 540W/12V | 800W/12V | 1040W/12V | 1300W/12V | 1560W/12V | 6240W/96V | 10400W/96V | |
| 780W/24V | 1080W/24V | 1600W/24V | 2080W/24V | 2600W/24V | 3120W/24V | ||||
| 1170W/36V | 1620W/36V | 2400W/36V | 3120W/36V | 3900W/36V | 4680W/36V | ||||
| 1540W/48V | 1560W/4BV | 3200W/4BV | 4160WI48V | 5200WF48V | 6240W/48V | ||||
| Maximum Open Circut Voltage Of Photovoltaic Modules | 150V (under the lowest temperature condition) 138V (under 25℃ condition) | 250V (under the lowest temperature condition) 225V (under 25°C) | |||||||
| Maximum Power Point Operating Voltage Range | 12V system | 20-150VDC | 20-150VDC | (96V system)128-250VDC | |||||
| 24V system | 36-150VDC | 36-150VDC | / | ||||||
| 36V system | 48-150VDC | 48-150VDC | / | ||||||
| 48V system | 54-150VDC | 64-150VDC | / | ||||||

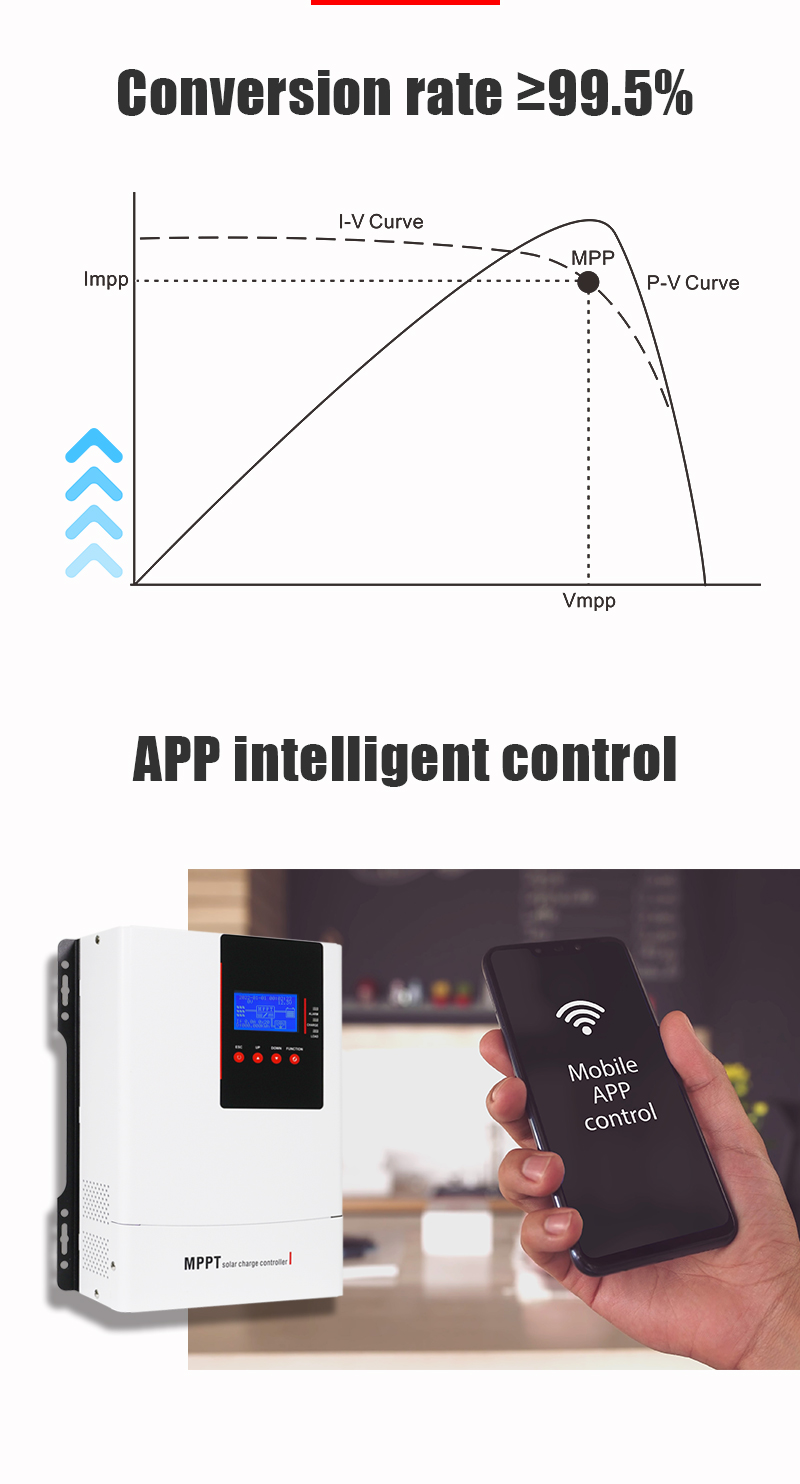

| Tracking Efficiency | ≥99.5% | ||||||||
| Maximum Conversion Efficiency | 97.50% | ||||||||
| Temperature Compensation Coefficient | - 3mV/℃/2V | ||||||||
| Statice Loss | 350mA/12V 170mA/24V 85mA/48V | 700mA/12V 350mA/24V 175mA/48V | 40mA/96V | 83mA/96V | |||||
| Dc Load Output Voltage | Can be tumed on in 12/24V mode | ||||||||
| Dc Load Rated Output Current | 20A | 40A | / | ||||||
| Dc Load Output Control | Normaly open normally dosed mode/time control mode/light control mode | / | |||||||
| Protective Function | PV input reverse connection protection, battery input reverse connection protection, battery overcharge protection, batteryundervoltage protection, battery over temperature protection, machine over temperature protection | ||||||||
| Cooling Method | Wind cooling | ||||||||
| Way Of Communication | RS485 | ||||||||
| Working Environment Temperature Range | -20℃-+50℃ | ||||||||

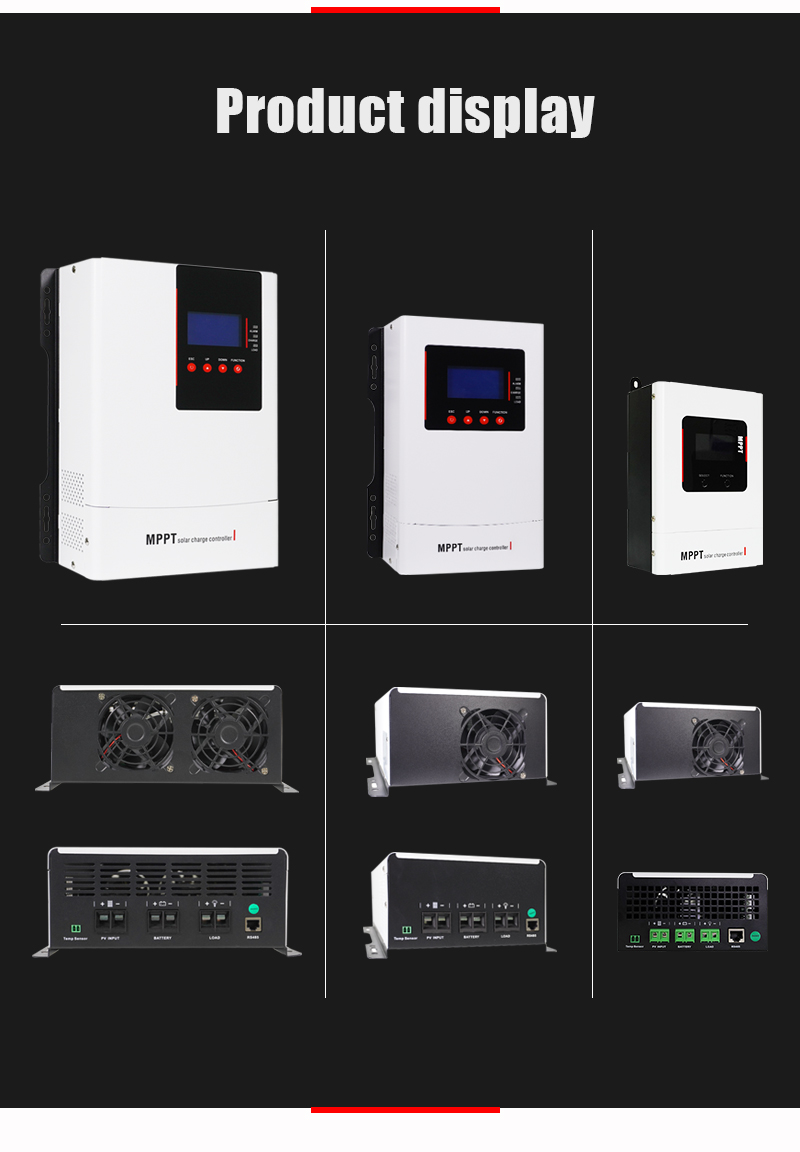

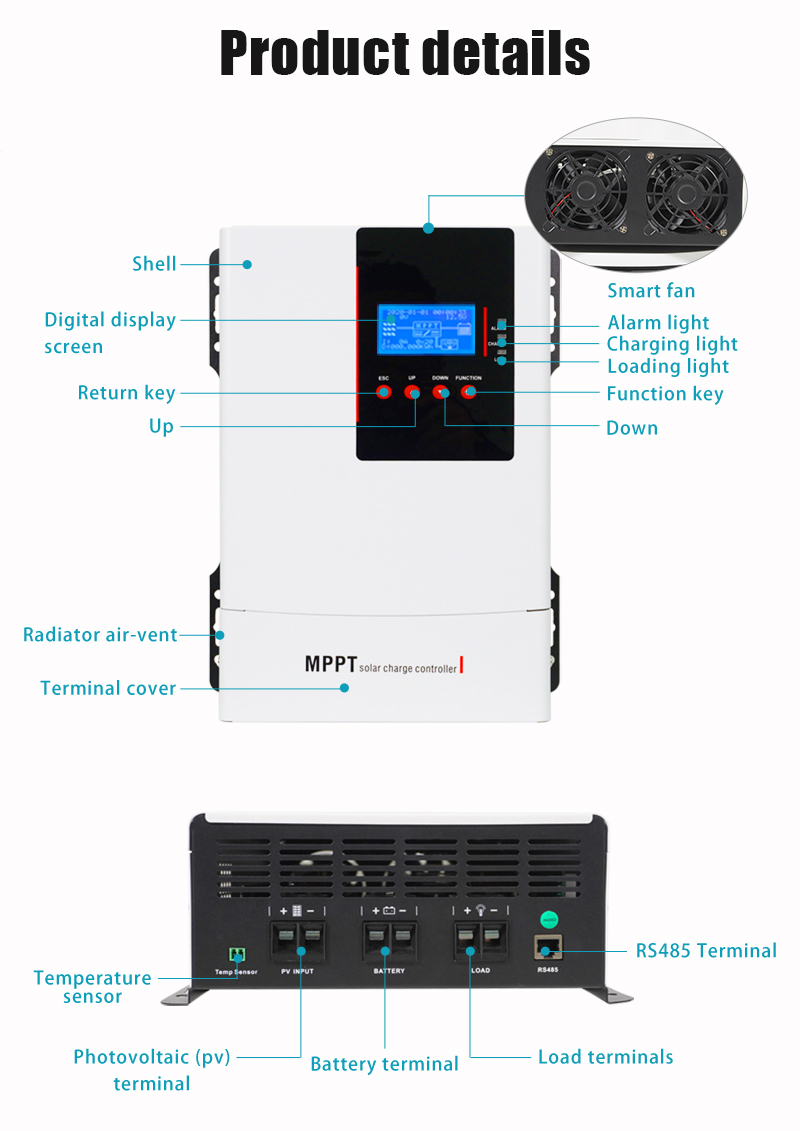

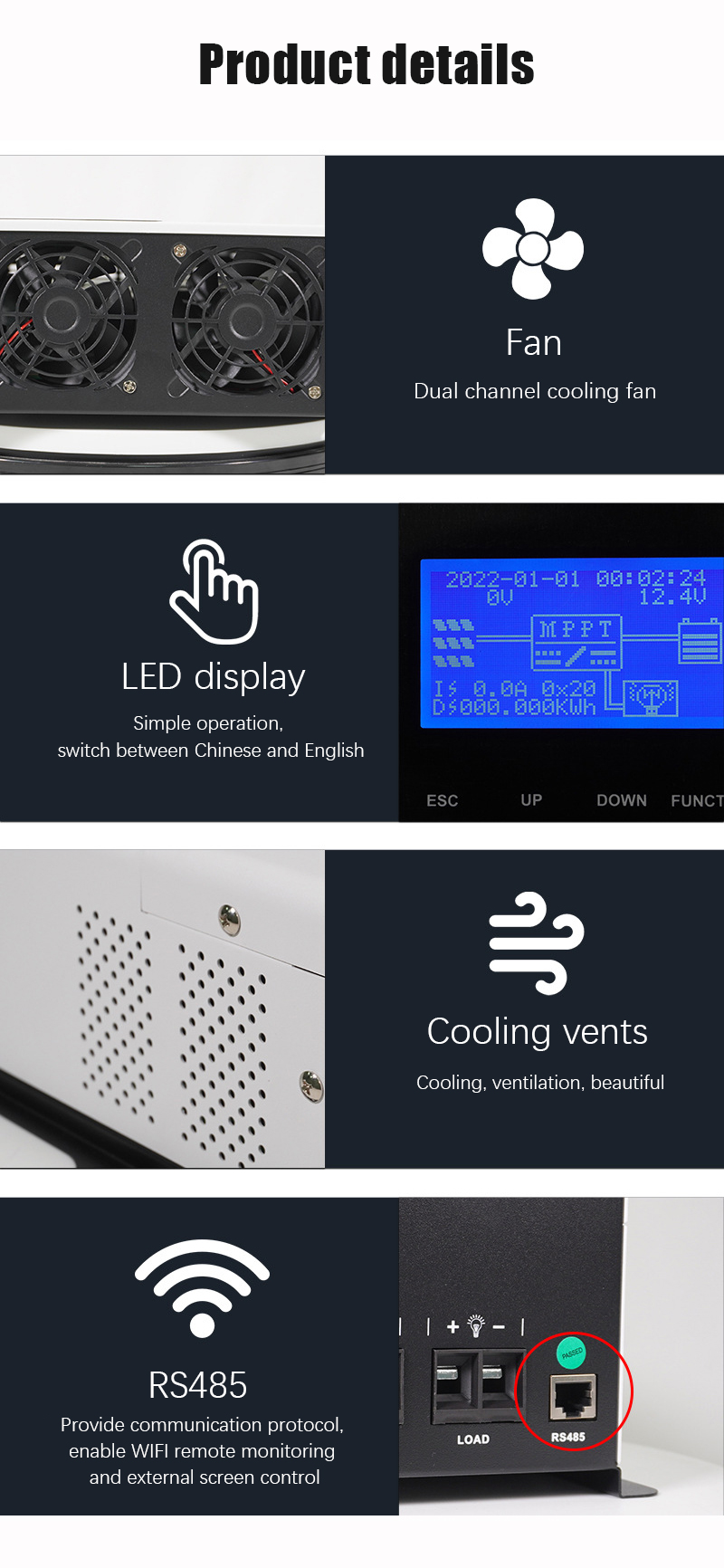

►Product Details
