120kW 215kWh Industrial and Commercial Energy Storage System High Voltage Hybrid ESS
Product introduction

The DEMUDA 120 kW/215 kWh high-voltage lithium-ion energy storage system combines a lithium iron phosphate (LiFePO₄) battery pack (768 V, 280 Ah) with an advanced battery management system (BMS) and power conversion system (PCS) to form a high-voltage commercial and industrial system. It supports seamless hybrid grid operation, enabling peak shaving, load shifting, backup power, and the integration of solar power. The system also features intelligent energy management features such as real-time monitoring and remote control, ensuring optimized operation and easy maintenance.


Rated Power: 120 kW

Battery Capacity: 215 kWh

Battery Voltage: 768 V

Battery Chemistry: LiFePO₄

Battery Current: 280 Ah

Protection Class: IP65

Cooling Method: Air Cooling

Communication Ports: RS485, CAN

Quantity:
Product details


►Product Parameters

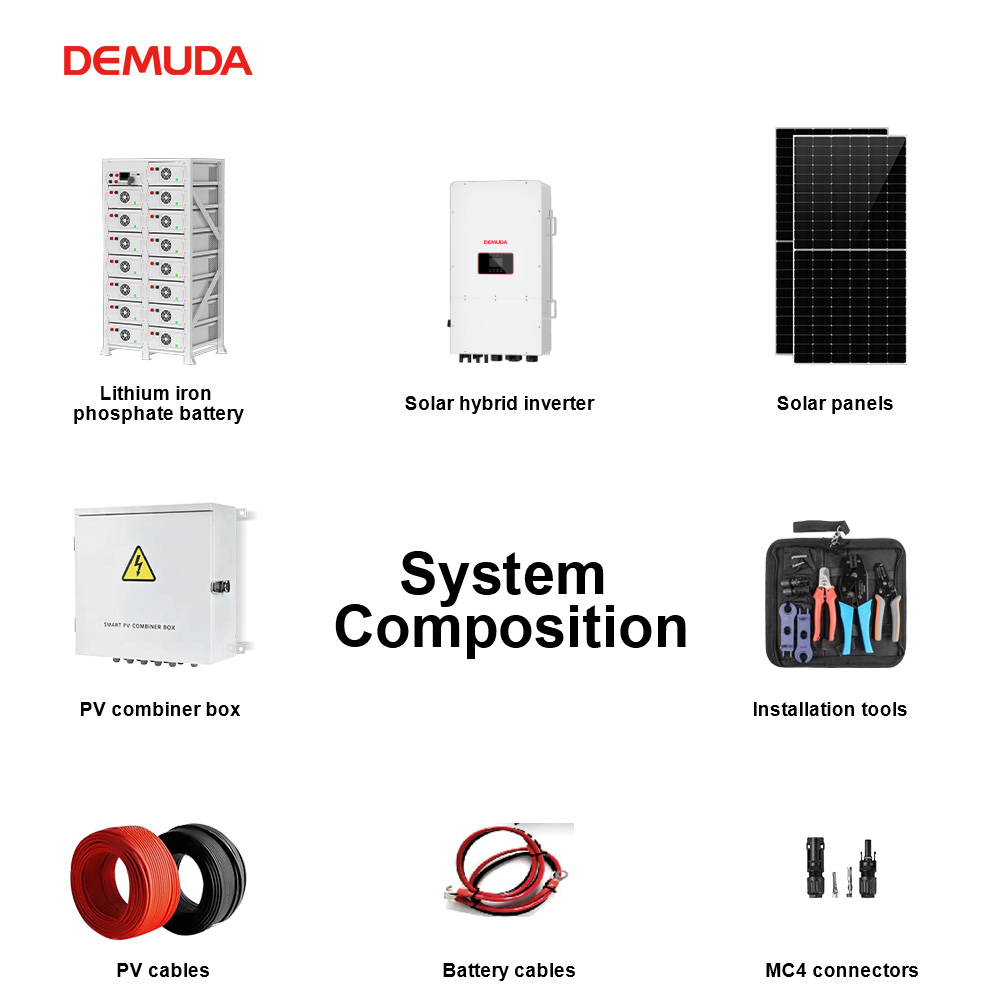

DEMUDA 120KW+215KWH Solar Energy Storage System Components List
ItemQuantityWarranty(years)
610W Solar Mono Panel200pcs5
60KW/220V/380V 50HZ Hybrid Inverter2pcs5
768V/280AH 215KWH Lithium iron phosphate battery1set5
Battery Cable DC450V/750V 25mm²5metres1
Battery Cable DC1000V/70mm²5metres1
PV combiner box 16 in 16 to 1000v1pcs1
PV cables1 4mm²1000metres1
PV cables2 4mm²100metres1
Installation tools1set1
MC4 Connectors50Pairs1
